Low-Voltage Electrical Distribution Cabinet

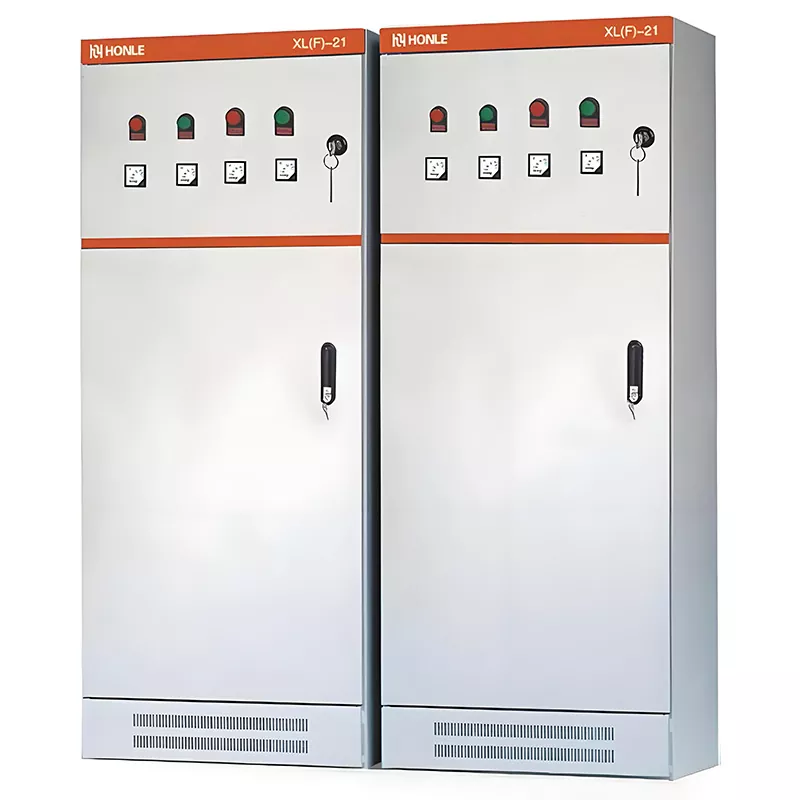

The HUAJIDIAN customized XL(F)-21 Low-Voltage Electrical Distribution Cabinet features a classic grey-white enclosure with an orange accent strip at the top. The cabinet door is divided into an upper operating section and a lower sealed equipment compartment, with a lockable door ensuring operational safety. An integrated ventilation louver at the bottom provides both heat dissipation and dust protection.

The front panel comes standard with red/green status indicators (operation/fault), voltage and current meters, and a master control key switch, allowing real-time monitoring of circuit status without opening the cabinet. Installation is flexible, supporting standalone wall-mounted placement or side-by-side modular configurations, making it suitable for high-capacity, multi-circuit power distribution projects.

As a global supplier of power distribution equipment, HUAJIDIAN operates its own factory, strictly adhering to both GB/T 7251.12-2013 and IEC 60439 standards. With a track record of successful project implementations, the cabinets are reliably suited for environments such as dusty industrial plants, commercial buildings, and municipal infrastructure, fully meeting safety requirements for industrial and civil electrical applications.

MODEL

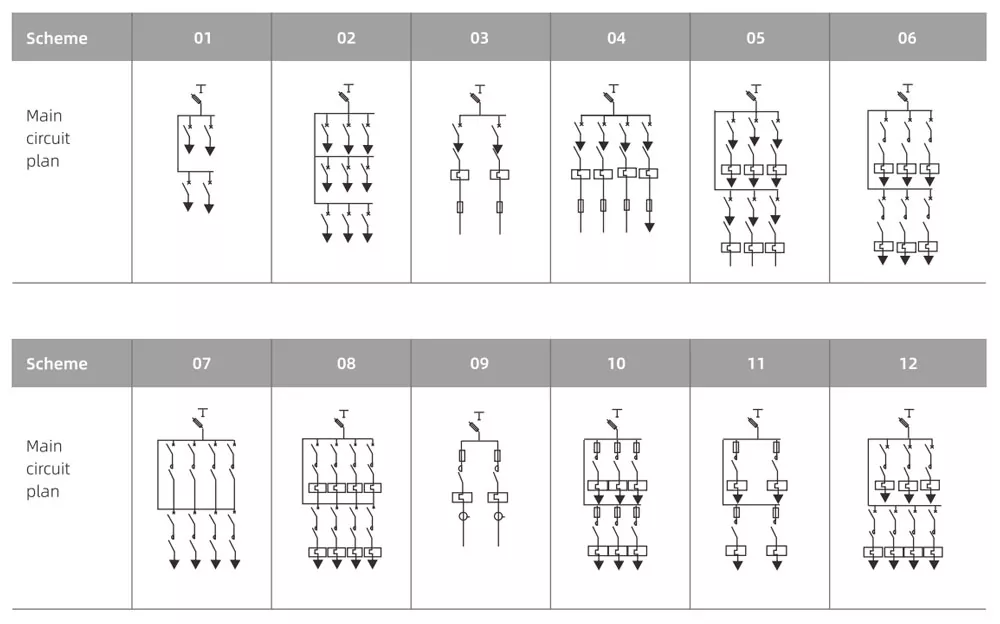

Core Technical Parameters

DETAILED IMAGES

Key Product Advantages

1. Upgraded Dust-Proof Louver Structure

Unlike standard XL-21 cabinets, the XL(F) model features optimized sealing at cabinet joints and improved bottom louvers. This design ensures ventilation while blocking dust and moisture, thereby reducing the risk of short-circuits and component aging—making it ideal for dusty workshops in industries such as casting, textiles, and machining.

2. Multi-layer Safety Protection System

Dual protection (overload, short-circuit, and earth leakage) for both main and branch circuit breakers, featuring red fault indicator lights for immediate visual alerts regarding circuit anomalies; independent grounding for the cabinet door, frame, and copper busbars, combined with a separated neutral-ground design, eliminates the risk of the cabinet enclosure becoming live; dual-locking mechanism (master control key + mechanical door lock) ensures the power is locked out during maintenance, preventing accidental operation while live.

3. Energy-efficient and Durable High-purity Copper Busbars

Standardized configuration using National Standard (GB) TMY rigid copper busbars, offering superior conductivity and high current-carrying capacity, ensuring minimal heat generation during long-term full-load operation; standardized busbar perforations and organized branch wiring reduce contact resistance, thereby minimizing energy loss and electricity costs over time.

4. Flexible Customization and Supply Options

HUAJIDIAN factory supports two supply models: fully assembled cabinets pre-installed with National Standard components, or sales of empty cabinets accompanied by a complete set of auxiliary materials (copper busbars, door locks, mounting rails); cabinet dimensions, protection ratings, and internal circuitry can all be customized to specific requirements.

Applicable Environmental Conditions

1. Ambient temperature: -5°C to +40°C; 24-hour average temperature not exceeding 35°C;

2. Installation altitude: ≤2000m; derating solutions available for high-altitude applications;

3. Ambient humidity: Relative humidity ≤90% (at 20°C, without condensation); dehumidification fans can be installed for humid workshop environments;

4. Prohibited scenarios: Not for outdoor use; unsuitable for environments with highly corrosive gases or flammable/explosive atmospheres; specialized explosion-proof cabinets are required for explosion-hazard zones.

Real-world Application Case Study

Case 1: Large-scale Textile Spinning Workshop (Industrial Environment with Dust)

A major domestic textile manufacturer purchased 16 units of the HUAJIDIAN XL(F)-21 400A Low-Voltage Electrical Distribution Cabinet for use in their spinning production lines. The workshop generates significant amounts of cotton lint and dust year-round; thanks to upgraded IP30 dust-proof louvers, the equipment operates continuously for a year without dust accumulation or short-circuit failures, reducing maintenance frequency by 60% compared to standard XL-21 units. Multiple cabinets are connected in parallel to centrally control 48 spinning machines, facilitating unified monitoring and rapid troubleshooting.

Case Study 2: High-rise Mixed-use Commercial Office Building (Civil Infrastructure Scenario)

A 22-story commercial office building is equipped with eight HUAJIDIAN 630A main power distribution cabinets and twenty-four branch distribution cabinets. The indoor environment suits the standard IP30 protection rating, while front-facing visual instruments reduce the workload for routine inspections. An independent grounding design prevents static electricity from interfering with sensitive office electronics, and the floor-standing, wall-adjacent structure fits perfectly into the building's narrow electrical riser shafts.

FAQ

Q1: What is the key difference between the XL (F)-21 dust-proof cabinet and the standard XL-21 distribution cabinet?

A: The XL (F)-21 is HUAJIDIAN’s upgraded dust-proof model; it features sealing strips at cabinet seams and optimized dust-proof louvers at the base, offering superior dust resistance—ideal for dusty workshops like textile or casting facilities. The standard XL-21 offers only basic IP30 protection without reinforced dust-proofing, making it better suited for clean environments like office buildings.

Q2: What are the maximum current capacity and number of branch circuits for the standard low-voltage electrical distribution cabinet? Can capacity be expanded?

A: The standard cabinet supports a main switch rating of up to 630A and can accommodate 6 to 12 branch circuits depending on cabinet width. For higher capacity requirements, multiple cabinets can be connected in parallel without the need for additional structural modifications.

Q3: Is it possible to purchase just the empty cabinet and install the components myself? What accessories are included?

A: HUAJIDIAN offers XL (F)-21 empty cabinets for separate purchase, complete with installation accessories such as TMY copper busbars, anti-theft locks, DIN rails, and terminal blocks. Standard sizes are readily available, and non-standard cabinets can also be customized according to your drawings.
