GCS Low Voltage Switchgear

The HUAJIDIAN GCS low-voltage withdrawable switchgear features an enclosed, vertical metal cabinet design and serves as a large-scale distribution unit for high-power industrial and commercial applications. Unlike residential fixed distribution boxes, this product employs a modular, withdrawable drawer structure that integrates power reception, distribution, control, and protection functions, making it ideal for high-power, demanding operational conditions.

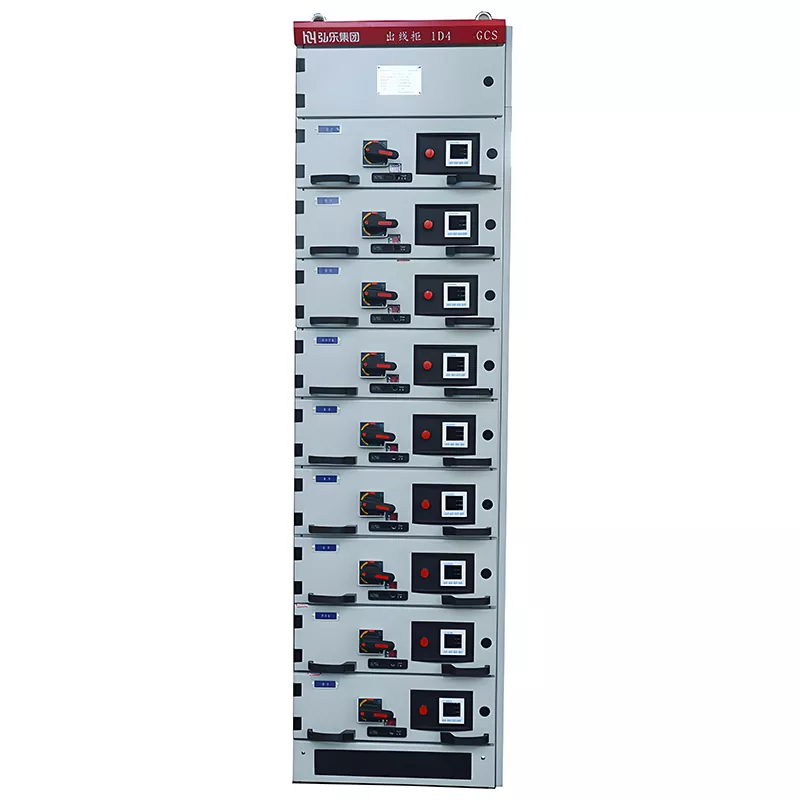

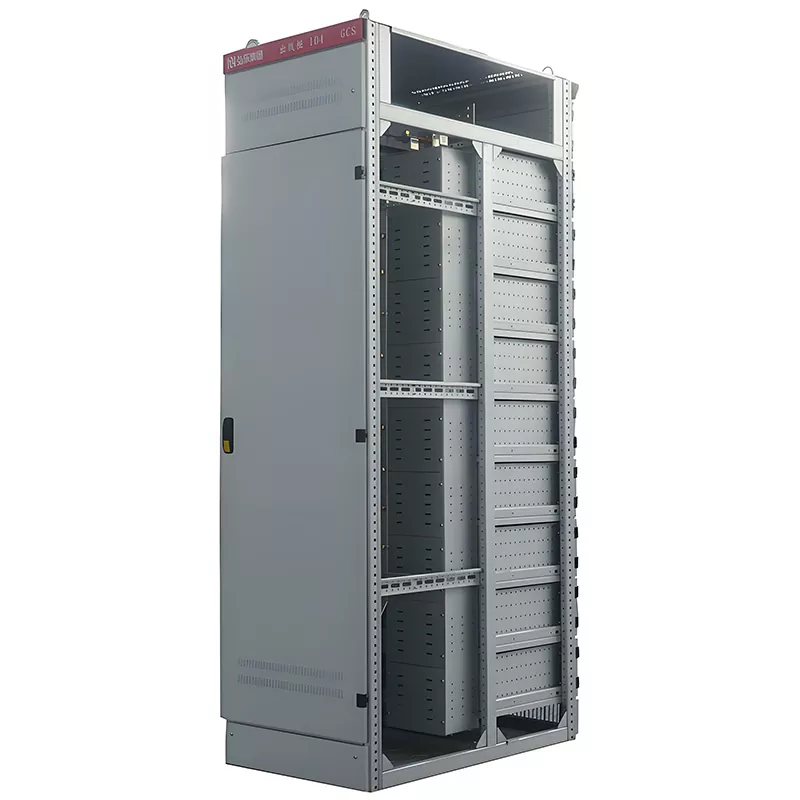

The product features rigorous industrial design; a red identification strip at the top of the cabinet facilitates quick recognition, while a dedicated lock on the front door prevents accidental opening and ensures operational safety. The equipment boasts a high overall protection rating, effectively shielding internal components from dust, solid foreign objects, and dripping water. Core electrical components—such as circuit breakers and contactors—are housed within independent drawer units, enabling modular circuit partitioning and ensuring efficient operation as well as convenient future maintenance.

Key Product Advantages

1. Efficient Maintenance and Reduced Downtime Losses

The withdrawable drawer module is a standout feature. In the event of a circuit fault or during routine maintenance, personnel can simply withdraw the specific drawer unit for inspection, repair, or complete replacement without dismantling the entire cabinet or cutting off power to the whole facility. This structure significantly reduces downtime, prevents localized faults from causing widespread outages, and markedly improves the continuity and stability of the power supply.

2. Safety, Reliability, and Strong Environmental Adaptability

With an IP41 protection rating, the product effectively blocks the intrusion of solid foreign objects and protects internal components against vertically dripping water, ensuring stable operation in complex industrial environments characterized by dust or humidity. Additionally, the equipment boasts excellent short-circuit resistance, capable of withstanding massive instantaneous short-circuit currents. This effectively prevents equipment burnout and power failures caused by short circuits, ensuring a high level of operational safety.

3. Intelligent Compatibility and Easy Expansion/Upgrading

The HUAJIDIAN GCS low voltage switchgear features highly scalable communication interfaces, allowing for seamless integration with automated computer networking systems. It enables intelligent monitoring, remote control, and data transmission within the power distribution system, meeting the demands for intelligent and automated operation in modern power distribution. Its standardized, modular design facilitates mass production at the factory while simplifying on-site installation, commissioning, and future capacity expansion or upgrades.

Core Technical Specifications

The HUAJIDIAN GCS low-voltage withdrawable switchgear is manufactured in strict accordance with national and industry standards. It offers precise specifications and stable performance, comprehensively covering mainstream low-voltage power distribution applications:

1. Rated Voltage: Options include 380V, 400V, and 660V, compatible with the vast majority of industrial and civil low-voltage power supply standards;

2. Main Busbar Rated Current: Up to 6300A, meeting high-power distribution requirements;

3. Short-Circuit Resistance: Main busbar rated peak withstand current reaches 220kA, offering robust resistance to instantaneous faults;

4. Protection Rating: IP41, suitable for indoor industrial, commercial, and building power distribution environments;

5. Structural Features: Fully modular drawer design, supporting independent maintenance and replacement of individual circuits.

Key Application Scenarios

With its mature technology, stable performance, and strong compatibility, the HUAJIDIAN GCS low voltage switchgear is widely used in critical power distribution scenarios. These include control centers for thermal and hydroelectric power plants, power distribution systems for petrochemical enterprises, power control centers for metallurgical and textile industries, and distribution rooms in high-rise buildings. It is particularly well-suited for applications requiring high power supply stability and intelligent networked monitoring.

Real-World Application Case

1.Project Background: A large integrated petrochemical enterprise in East China needed to upgrade its plant-wide power distribution system. The existing fixed-type distribution boxes were cumbersome to maintain, resulted in long downtime during faults, and lacked intelligent monitoring capabilities—failing to meet the core requirement of continuous, stable power supply for chemical production lines.

2.Application Solution: The enterprise purchased 32 units of HUAJIDIAN GCS low-voltage withdrawable switchgear for deployment in its core power distribution workshop. The equipment connects to the enterprise's automated power monitoring system via expanded communication interfaces, enabling real-time monitoring of distribution data and remote fault early warning. Its modular drawer structure allows for independent control and protection of circuits across various production lines.

3.Application Results: Following deployment, the duration of power outages for single-circuit maintenance was reduced by over 80%, the system's short-circuit fault resilience was significantly enhanced, and the annual power supply failure rate dropped to near zero. Intelligent monitoring capabilities facilitate refined power management, effectively lowering operational risks and energy costs, while fully demonstrating the product's reliability and practicality in high-end industrial environments.

FAQ

Q1: What is the key difference between GCS withdrawable switchgear and standard fixed distribution boxes?

The core difference lies in the modular withdrawable structure. Standard fixed distribution boxes feature a monolithic, fixed design, requiring a complete power shutdown and unit disassembly for maintenance or component replacement. In contrast, HUAJIDIAN GCS switchgear utilizes an independent drawer unit design; each circuit corresponds to a specific drawer that can be withdrawn individually for maintenance or replacement without disrupting power to other circuits, thereby ensuring greater power continuity. Additionally, the product's ingress protection rating, current-carrying capacity, and intelligent networking capabilities far exceed those of standard civil-grade fixed distribution boxes.

Q2: Can HUAJIDIAN GCS low voltage switchgear be customized?

Yes. As a professional manufacturer and supplier, HUAJIDIAN can customize the number of drawers, circuit configurations, communication interface types, and cabinet dimensions based on the specific power distribution requirements of sectors such as power generation, chemical processing, and construction. Leveraging a standardized factory production system, we efficiently execute customized production while ensuring product compliance and operational stability, meeting the diverse power distribution needs of various industries.

Q3: What after-sales services are included with the product?

HUAJIDIAN provides comprehensive, one-stop after-sales service for GCS low voltage switchgear throughout the product lifecycle. Services include on-site installation guidance, equipment commissioning, operational training, guidance on periodic inspections and maintenance, and rapid response to fault inquiries. Warranty services for product quality issues are provided in strict accordance with industry standards. Users can inquire about product specifications, customization options, price quotes, and after-sales matters at any time; our professional technical team will promptly provide tailored solutions.
