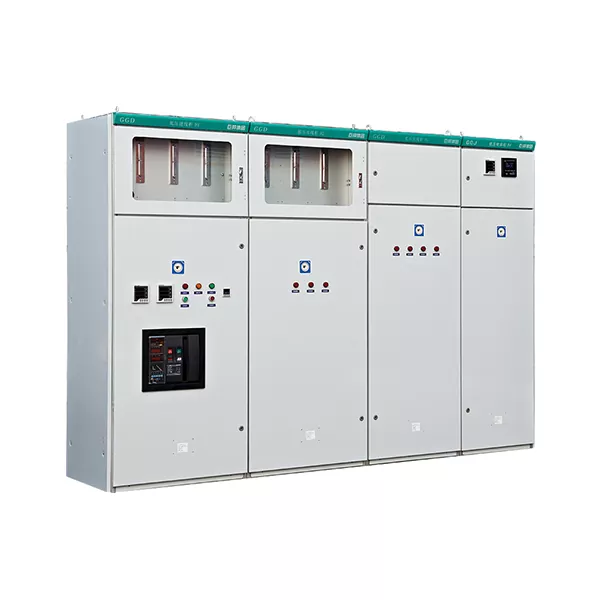

GGD Low Voltage Switchgear

HUAJIDIAN GGD low voltage switchgear integrates decades of manufacturing experience, standardized production lines, and rigorous quality control. It balances safety, durability, and the need for smart upgrades, serving power distribution needs across industrial, commercial, residential, and power infrastructure sectors. Proven stable in numerous real-world projects and fully certified, the equipment offers domestic and international clients a cost-effective, long-lasting solution for low-voltage power distribution.

We operate our own comprehensive manufacturing facilities, featuring sheet metal workshops, assembly lines, and full-process quality control including power-on aging tests. Products come with complete 3C certification, factory conformity certificates, and system schematics. As a trusted global supplier, we offer customization options—such as non-standard dimensions, anti-corrosion/explosion-proof designs, and smart distribution upgrades—alongside end-to-end services including site surveys, solution optimization, and installation guidance. Numerous successful project implementations validate the equipment's reliability, including short-circuit withstand capabilities, various protection ratings, and compartmentalized isolation.

Product Overview

The GGD series consists of indoor, fixed-type low-voltage power distribution cabinets independently developed by HUAJIDIAN, designed in compliance with national standard GB7251 and international standard IEC60439:

1 Applicable Power Grid: 50Hz industrial frequency, 400V rated voltage distribution systems.

2 Current Range: 630A–3150A; main busbar capacity up to 3150A (adjustable upon request).

3 Core Functions: Power distribution, overload and short-circuit protection, and motor start/stop control.

4 Flexible Configuration: Can be combined with incoming feeder cabinets, outgoing feeder cabinets, and reactive power compensation cabinets to form an integrated low-voltage power distribution system.

5 Application Scenarios: Power plants, substations, industrial and mining sites, food processing facilities, commercial complexes, and high-rise residential buildings.

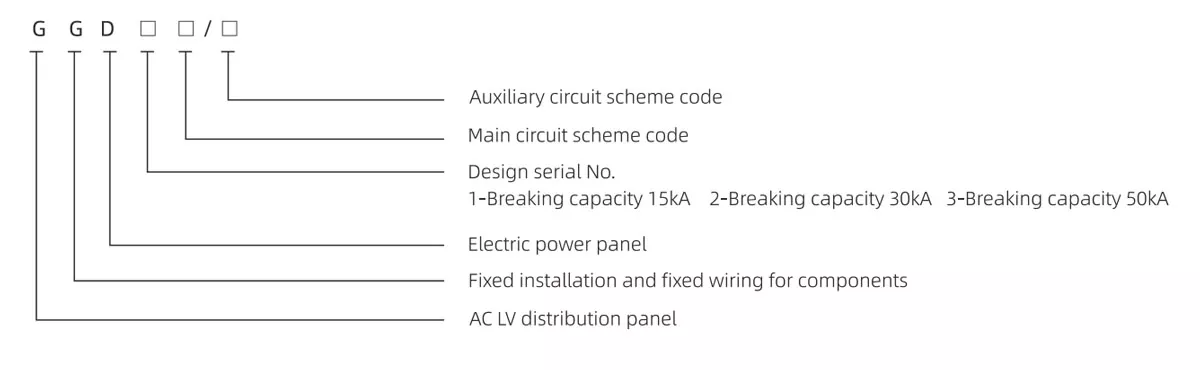

MODEL

HUAJIDIAN Manufacturing Capabilities

1. Dedicated Sheet Metal Workshop: Handles cabinet cutting, bending, and forming processes.

2. Specialized Component Assembly Line: Standardized assembly procedures to minimize human error.

3. Comprehensive Incoming Material Inspection: Rigorous screening of copper busbars, circuit breakers, steel plates, and insulation components upon entry.

4. Finished Product Burn-in Testing: Each cabinet undergoes load-based burn-in testing before leaving the factory to eliminate latent faults.

5. Complete Delivery Documentation: Each unit comes with a factory certificate of conformity, full 3C certification, and customized primary and secondary system schematics.

In addition to standard products, we offer one-stop customization services: non-standard dimensions, upgrades for anti-corrosion or explosion-proof protection, and the installation of remote communication modules and energy consumption monitoring systems. We also provide on-site surveys, schematic optimization, and on-site technical guidance for installation.

Key Technical Specifications

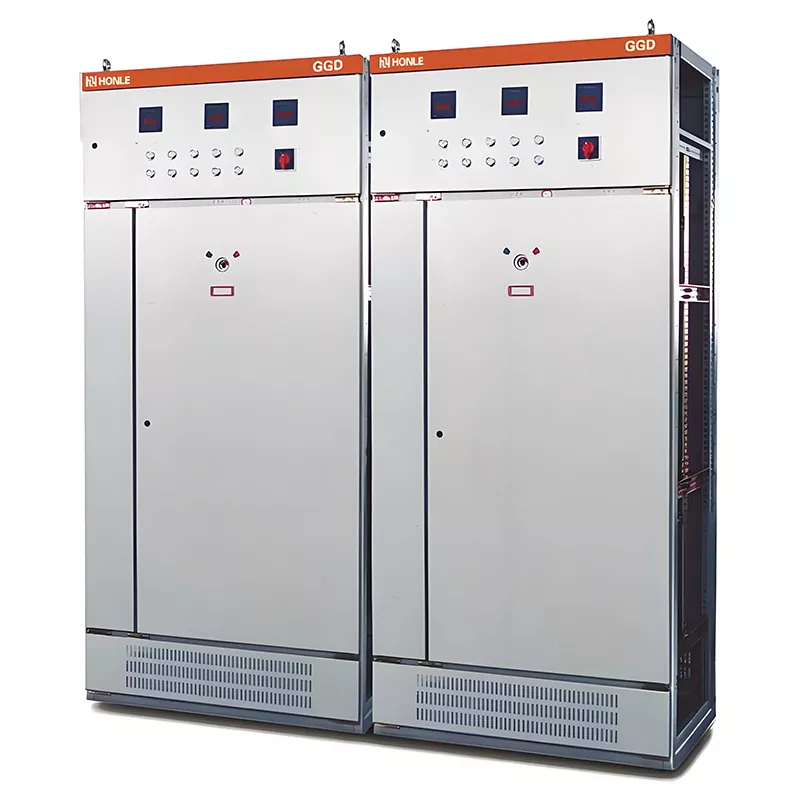

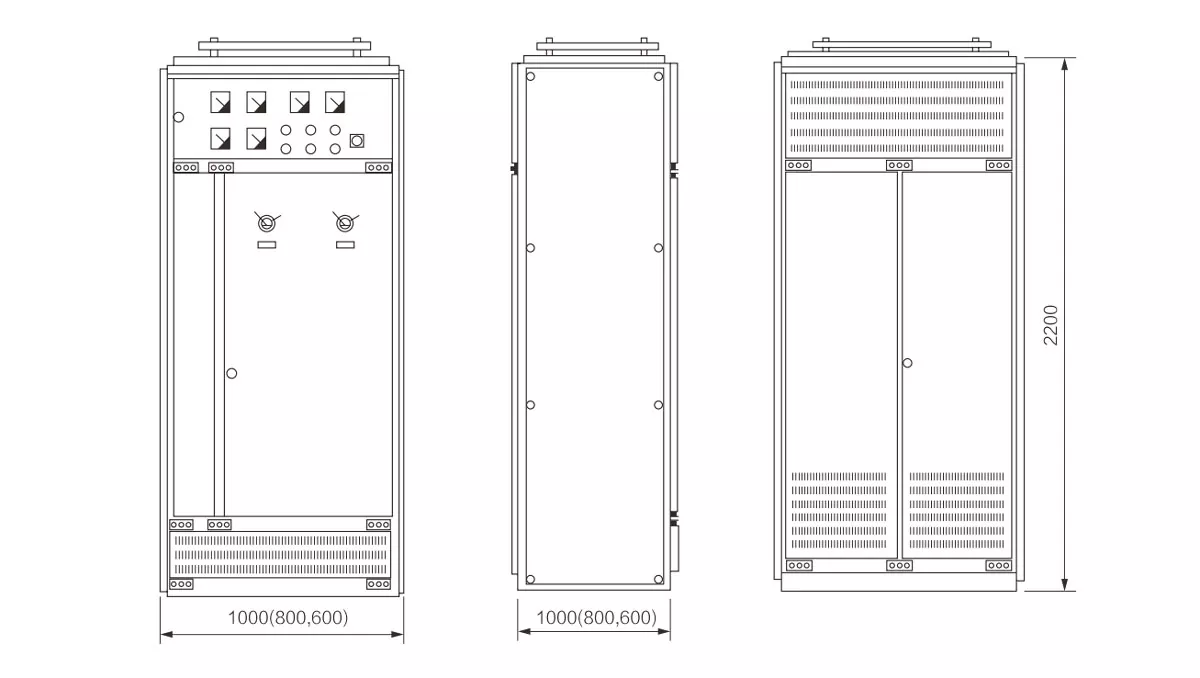

Modular Cabinet Structure Design

1. Cabinet Frame and Panels

The structural profiles feature pre-drilled 20mm standard modular mounting holes and utilize bolted assembly rather than extensive welding; this ensures high mechanical strength capable of withstanding the electromagnetic forces generated during short-circuit events. Cabinet doors and side panels are constructed from high-quality 1.5–2.0mm cold-rolled steel, treated with a dual-layer process (phosphating/rust removal followed by epoxy electrostatic powder coating) to ensure acid and alkali resistance and long-term durability against peeling or rusting.

2. Top Busbar Compartment

An independent, sealed busbar chamber at the top houses T2 copper main busbars secured by flame-retardant PPO busbar clamps (rated for 120°C heat resistance). This isolated compartment contains potential busbar faults, preventing damage to components located in the sections below.

3. Front Functional Unit Compartment

The front-facing operation area is divided into an instrument viewing section and a switch operation section; the transparent window allows for reading instruments and checking switching status without opening the door. It integrates circuit breakers, contactors, instruments, and indicator lights to facilitate multi-circuit power distribution.

4. Bottom Cable Compartment

An independent wiring chamber at the bottom features pre-cut cable entry/exit ports and ventilation louvers. Power and control wiring are routed separately to prevent interference during maintenance, while dense ventilation holes at the base continuously lower the internal operating temperature.

Core Product Advantages

1. Superior Short-Circuit Safety Performance

The GGD low voltage switchgear supports a short-time withstand current of up to 50kA; busbar and component selections have undergone simulated testing for short-circuit temperature rise. In the event of a sudden short circuit, the cabinet structure remains undeformed and copper busbars do not melt, significantly reducing the risk of fire in power distribution systems. This makes it suitable for facilities with high-power impulse loads, such as smelting plants and heavy industry sites.

2. Compartmentalized Isolation and Comprehensive Electric Shock Protection

Standard IP30 protection prevents the ingress of solid foreign objects larger than 2.5mm and accidental finger contact with live parts. The busbar, functional unit, and cable compartments are fully isolated, ensuring that a fault in one zone does not propagate to others. An optional door-interlock power-cutoff feature eliminates the risk of electric shock during maintenance.

3. Front-access design for low-cost expansion and modification

Featuring a full front-access layout, all components are installed at the front; replacing parts or routing cables does not require removing the rear panel. Standardized modular mounting holes allow for future capacity expansion without frame modifications, reducing costs associated with downtime and retrofitting.

4. Wide temperature range, suitable for harsh operating conditions

The standard GGD low voltage switchgear is suitable for conventional environments ranging from -5°C to +40°C. The upgraded IP54-rated enclosure is designed for high-humidity, dusty, or corrosive environments—such as chemical plants and underground parking garages—ensuring stable operation even in areas with significant temperature fluctuations.

Application Scenarios

1. Industrial Sector: Metallurgy and mining, machinery manufacturing plants, chemical industrial parks, and food processing workshops; power distribution and control for machine tools, air compressors, and fan motors.

2. Commercial & Residential Buildings: High-rise residential complexes, commercial complexes, and office building underground distribution rooms; power supply and control for lighting, central air conditioning, and fire pumps.

3. Power Infrastructure: Small-to-medium-sized power plants and regional substations; low-voltage complete power distribution systems for auxiliary plant equipment.

Real-World Project Cases

1. 50kA High-Breaking-Capacity GGD Project for a Gansu Smelter

A non-ferrous metal smelter in Northwest China procured 48 units of HUAJIDIAN 1200A high-breaking-capacity GGD switchgear to serve as the main distribution cabinets for its workshop, where the facility faced high load current surges and stringent short-circuit protection requirements. The equipment has operated continuously for three years without enclosure deformation or busbar overheating faults; our team handled the entire process, including site surveys, solution optimization, and on-site installation guidance.

2. IP54 Corrosion-Resistant GGD Project for a Coastal Chemical Park

An underground pump station at a coastal chemical park procured 26 units of customized IP54 corrosion-resistant switchgear to withstand high humidity and corrosive gases. We upgraded the coating process and installed sealed cable glands; the equipment has operated stably for 24 months with no issues regarding rust or insulation degradation.

FAQ

Q1: What customization services does HUAJIDIAN GGD low voltage switchgear support?

A1: Three key customization areas: ① Dimensional customization: Adjusting cabinet dimensions (length, width, height) to fit the specific space of the power distribution room; ② Protection upgrades: IP40/IP54 ratings, anti-corrosion coatings, and explosion-proof structural reinforcement, suitable for chemical plants and mining operations; ③ Smart upgrades: Pre-installation of remote communication capabilities, energy consumption monitoring, and automatic reactive power compensation devices. Complimentary services include on-site surveys, drawing optimization, and on-site installation guidance.

Q2: What qualification documents are included with the delivery of each HUAJIDIAN GGD unit?

A2: A complete set of official documentation is provided upon shipment: factory certificate of conformity, full 3C mandatory certification report, electrical system schematics, busbar layout diagrams, and a detailed list of component specifications. All documentation meets the acceptance standards of domestic power grids and the requirements for overseas project tenders.

Q3: What are the environmental differences between the standard IP30 cabinet and the optional IP54 cabinet?

A3: The standard IP30 model is suitable for clean, dry distribution rooms in power stations, office buildings, and general machinery plants, offering protection primarily against large solid objects. The IP54 model offers protection against splashing water and fine dust, making it suitable for humid or corrosive environments such as underground pump rooms, coastal chemical plants, and dusty mining sites; these units feature sealing gaskets, waterproof cable outlets, and enhanced anti-rust coatings.
