Power System Three Phase, 50Hz/60Hz
Certifications IEC 62271-200, IEC 694, GB3906, DIN VDE 0670

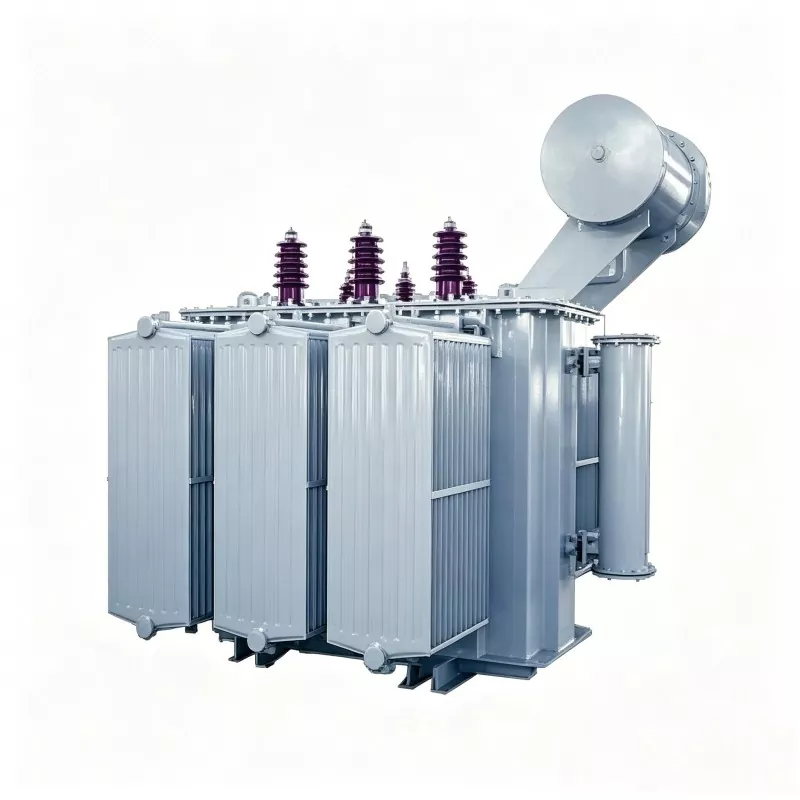

The Huajidian three phase power transformer is a highly efficient and energy-saving power conversion device developed and manufactured based on electromagnetic induction technology. The device integrates three sets of single-phase transformer windings into a single iron core, significantly improving the utilization rate of copper and the iron core. For the same rated capacity, compared to three independent single-phase transformers, this product is smaller, lighter, and has a lower overall cost, completely solving the pain points of traditional single-phase combined equipment, such as large footprint and high investment costs.
As a trusted manufacturer in the power industry, Huajidian three phase power transformers cover the entire process of power generation, long-distance transmission, and terminal distribution. They enable high-voltage step-up for long-distance transmission and high-voltage step-down for local power supply, perfectly adapting to the power demands of the power grid, industrial and commercial facilities, and new energy systems. With excellent voltage regulation performance and stable current transmission capabilities, they comprehensively ensure the efficient and reliable operation of modern power systems.
The three phase power transformer follows the basic principle of electromagnetic induction, realizing the transmission and conversion of electrical energy between primary and secondary circuits at the same frequency. By adjusting the turns ratio of the primary and secondary windings, it stably changes voltage and current parameters, completing core functions such as AC/DC conversion and high-voltage step-down, adapting to various power distribution and phase supply needs. The equipment has low transmission losses and stable operation, effectively improving the overall operating efficiency of the power system.

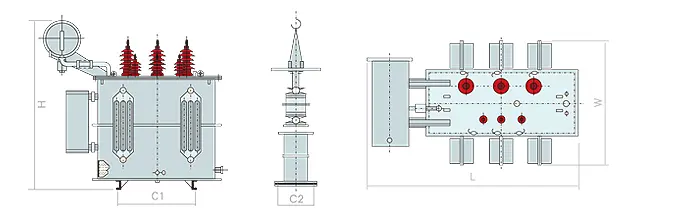

A standard Huajidian three phase power transformer is equipped with at least 6 windings, including 3 primary windings and 3 secondary windings. The integrated iron core and standardized winding layout significantly improve the structural stability and material utilization of the equipment, simplifying redundant structures and achieving lightweight and miniaturized equipment, making installation, transportation, and daily maintenance more convenient. The equipment is also equipped with standard pluggable terminals to ensure safe and stable circuit connections.
The delta connection is a three-phase, three-wire structure without a neutral wire. The output terminals form a delta closed-loop connection, suitable only for three-phase load power supply scenarios. Its line voltage is consistent with the power supply voltage, and the phase current is 1/√3 (1.73) of the line current. The biggest advantage of this connection method is its excellent current balance regulation capability. When a large-capacity unbalanced load is connected to the secondary side, it can automatically balance the primary side input current, avoiding equipment failure caused by current deviation, and is suitable for stable high-power industrial power supply scenarios.
The star connection is a three-phase, four-wire structure, equipped with three phase wires and one neutral wire (N wire). It offers more flexible power supply options and can simultaneously power high-power three-phase industrial loads, as well as single-phase loads for residential and small commercial applications. The voltage conversion formula is: Line voltage = √3 × Phase voltage. The neutral wire can be grounded as needed, significantly improving equipment operational safety, eliminating voltage fluctuations and leakage hazards, and is widely used in urban residential power distribution and mixed-load power supply scenarios in commercial complexes.
Supports high-current, high-capacity power transmission, with uniform three-phase current distribution, effectively reducing line overload risks and equipment downtime probability, providing continuous and stable power assurance for industrial production and grid operation.
Optimized core and winding structure significantly reduces long-distance transmission losses, improves the overall operating efficiency of the power system, and achieves energy conservation and consumption reduction.
Excellent voltage regulation performance; system configuration can be adjusted according to equipment iteration and grid expansion needs. Floor-mounted models are suitable for urban underground power distribution scenarios and can adapt to complex urban power supply environments.
Can convert intermittent new energy sources such as wind power and photovoltaics into grid-connected standard energy, achieving safe and efficient grid connection of new energy sources and contributing to the construction of new power systems.
The delta connection configuration effectively reduces voltage drop, solving voltage instability issues caused by long-distance power transmission and load fluctuations, ensuring a constant output voltage.
A 50MW coastal wind farm required a transformer to convert fluctuating wind power into standard electrical energy that can be grid-connected and transmitted over long distances. The project adopted a delta-connected Huajidian three phase power transformer. The equipment can stably regulate current balance, reduce transmission losses, effectively resist voltage fluctuations caused by wind speed changes, and achieve efficient grid connection of wind power. The equipment has operated stably for two years without failure, significantly improving the wind farm's transmission efficiency.
Confirm the input and output voltage parameters of the scenario and select the delta or star connection method according to the load type (pure three-phase load/single-phase mixed load).
Accurately calculate the total power consumption and maximum operating current of the power system. High-power industrial scenarios require the selection of large-capacity models to prevent equipment overload operation.
Transformers generate continuous heat during operation. Therefore, it is necessary to select equipment with matching heat dissipation capabilities based on the installation environment (indoor/outdoor, enclosed/ventilated) to ensure long-term stable operation.
Q1: What are the core differences and applicable scenarios between star and delta connections for Huajidian three phase power transformers?
A1：The core difference lies in the circuit structure and applicable scenarios. A star connection is a three-phase four-wire structure with a neutral wire, capable of supplying power to both single-phase and three-phase loads, and supports neutral grounding protection, suitable for urban residential and mixed load distribution scenarios. A delta connection is a three-phase three-wire structure without a neutral wire, only suitable for three-phase loads, but with stronger current balance regulation performance, often used in high-power industrial equipment and long-distance stable power transmission scenarios.
Q2: Why is Huajidian's integrated three-phase transformer more cost-effective than three single-phase transformers?
A2：Huajidian's three-phase transformer uses an integrated core and integrated structure, significantly improving the utilization rate of copper and core materials. With the same rated capacity, the equipment is smaller, lighter, and has lower production costs. It also reduces installation space, transportation, and subsequent maintenance costs, and avoids the failure risks and compatibility losses associated with operating multiple single-phase devices together, resulting in a significantly higher overall cost-performance ratio.
Huajidian has been deeply involved in the R&D, production, and sales of power transmission and transformation equipment for many years, and is a reliable domestic power equipment brand in China. The brand has its own standardized production lines and professional technical team, achieving independent production of core components and full-process quality inspection. As an authoritative supplier and manufacturer in the industry, we provide one-stop services including selection guidance, customized configuration, installation guidance, and after-sales maintenance, offering users highly stable, high-quality transformer products and professional technical support.
