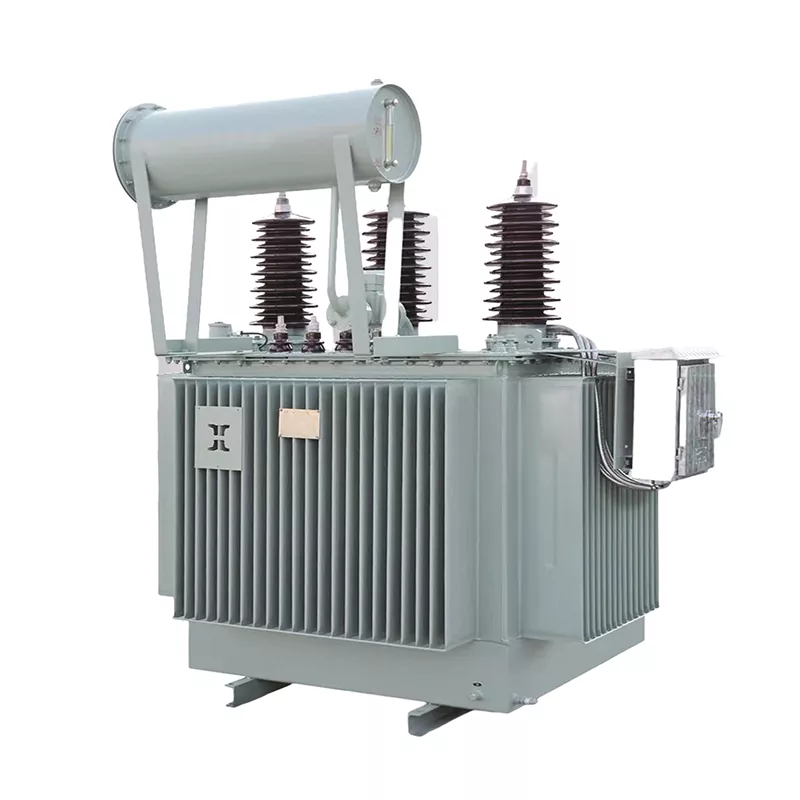

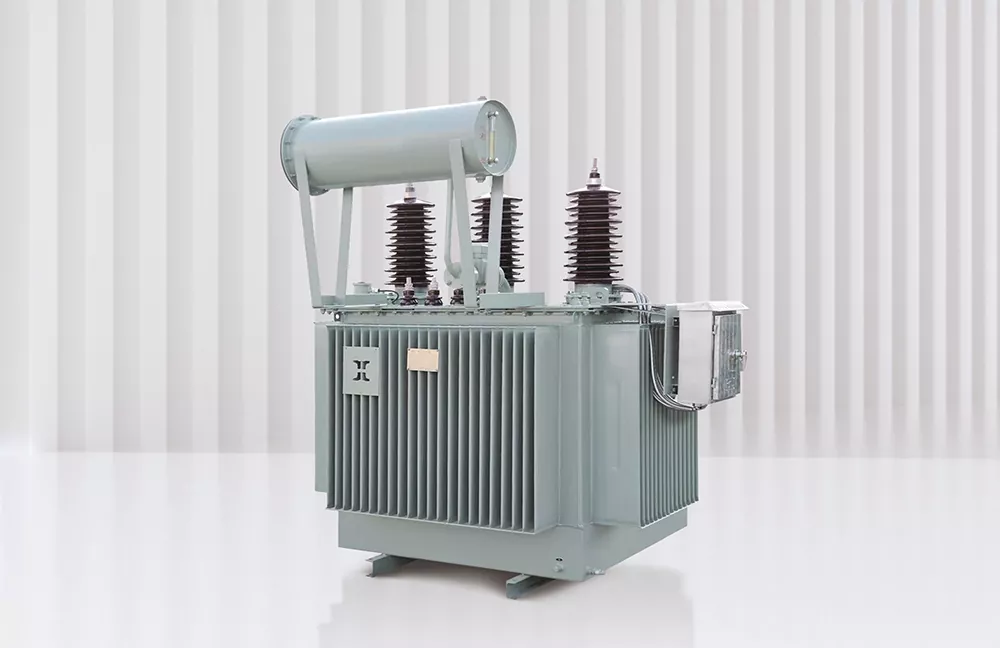

The Huajidian step up power transformer is a durable and efficient power conversion device independently developed and manufactured in our own factory, specifically designed to solve the pain points of long-distance power transmission in modern power systems. Conventional generator sets output voltages of only 11-33kV, which cannot meet the needs of large-capacity, long-distance power transmission. Direct transmission results in a significant loss of electrical energy as heat, substantially increasing equipment and infrastructure costs.
This product achieves voltage boosting by adjusting the turns ratio of the primary and secondary coils. Without changing the total transmission power, it increases voltage and reduces line current, effectively solving the problems of high losses and costs in low-voltage transmission. It balances the technical and economic aspects of long-distance power transmission and is a core supporting equipment for grid connection of traditional thermal power and new energy power.
The core principle of the Huajidian step up power transformer is electromagnetic induction, following the conversion law between coil turns and voltage.
When the equipment is running, alternating current is applied to the primary winding, generating a stable magnetic flux in the iron core. Based on the turns ratio of the primary and secondary coils, a higher voltage is induced in the secondary winding. The product converts the low-voltage electrical energy of the generating unit into the high-voltage electrical energy required for long-distance power transmission by increasing the number of turns in the secondary coil.
The transformer only completes the voltage and current conversion through electromagnetic induction; it does not generate electrical energy itself, does not change the total transmission power, and there is no additional energy loss during the voltage stabilization and boosting process.
Adapts to the voltage boosting needs of generator sets, it can boost the low-voltage output of 11-33kV units to the standard transmission voltage of 220-765kV, achieving low-loss, long-distance power transmission.
Adapts to renewable energy generation scenarios such as wind power and photovoltaics, it can convert the medium-low voltage output voltage of wind turbines (690V, etc.) to the standard grid transmission voltage, solving the problem of low-voltage grid connection for renewable energy and improving the utilization rate of clean energy.
Suitable for power supply of industrial furnaces, high-voltage electrical testing, and power supply of special high-voltage equipment, providing a stable high-voltage power supply guarantee for industrial production and high-voltage experiments.
The reversible step-up/step-down device supports a full range of voltage conversion from 110V to 240V, adapts to 50Hz/60Hz dual grid frequencies, and is equipped with a universal international socket to meet the voltage matching needs of cross-border electrical appliances in various countries.
Taking a 500MW thermal power plant supporting project as an example, this case demonstrates the product's actual performance in energy saving, cost reduction, quality improvement, and efficiency enhancement:
The power plant's generator units originally output voltage was 21kV. Direct long-distance transmission at low voltage resulted in significant losses and poor economic efficiency. The project used a Huajidian customized step up power transformer to stably boost the 21kV unit voltage to the 400kV high-voltage transmission standard.
Long-term operational monitoring showed that compared to the unit's low-voltage direct transmission mode, the project's transmission losses were reduced by more than 85%. Simultaneously, the reduced transmission current allows for the adaptation to smaller transmission lines, significantly saving on grid infrastructure and maintenance costs, effectively improving the overall power grid stability, and creating significant economic and operational value for the power plant.
By boosting voltage and reducing current, the I²R heat loss of the transmission lines is minimized, significantly improving energy utilization and fundamentally solving the problem of energy waste in long-distance power transmission.
Low-voltage transmission eliminates the need for large-diameter cables and supporting equipment, effectively reducing power grid material, construction, and subsequent operation and maintenance costs, resulting in significant project economic benefits.
Standardized high-voltage transmission avoids voltage fluctuations and power attenuation issues associated with long-distance low-voltage transmission, optimizing power grid operation and improving the overall safety and stability of the power supply system.
With a power range of 50W-20000W, the product caters to both industrial power generation and residential voltage conversion scenarios. Its robust and durable structure, stable electromagnetic conversion performance, and long-term adaptability to complex power supply environments ensure reliable operation.
Q1: Will a step up power transformer change the total transmission power, causing additional power loss?
A1: No. Huaji Electric's step-up transformer relies on electromagnetic induction to complete voltage and current conversion, only increasing the transmission voltage and reducing the line current. It does not generate or consume additional electrical energy, nor does it change the total transmission power. The product optimizes line transmission heat loss, not the electrical energy loss generated by the equipment itself.
Q2: What is the difference between industrial power generation step-up transformers and residential 110V/220V step-up/step-down transformers?
A2: The two differ significantly in application scenarios, voltage levels, and power ranges. Industrial step-up transformers are mainly used for power plant grid connection, enabling high-voltage conversion from 11-33kV to 220-765kV, suitable for large-capacity power transmission. Residential reversible transformers are primarily designed for cross-border household appliance use, only enabling low-voltage conversion between 110V and 220/240V, with lower power consumption and greater portability. Both operate on the same principle and are customized devices for specific scenarios.
Q3: Are Huajidian voltage conversion devices compatible with global dual-frequency power grid environments?
A3: Fully compatible. The entire series of 110V-240V step-up/step-down transformers supports 50Hz and 60Hz global dual-frequency operation, adopts a reversible voltage conversion design, and is equipped with universal international sockets, compatible with plug standards in most countries worldwide, stably meeting the voltage adaptation needs of electrical appliances in various countries.
