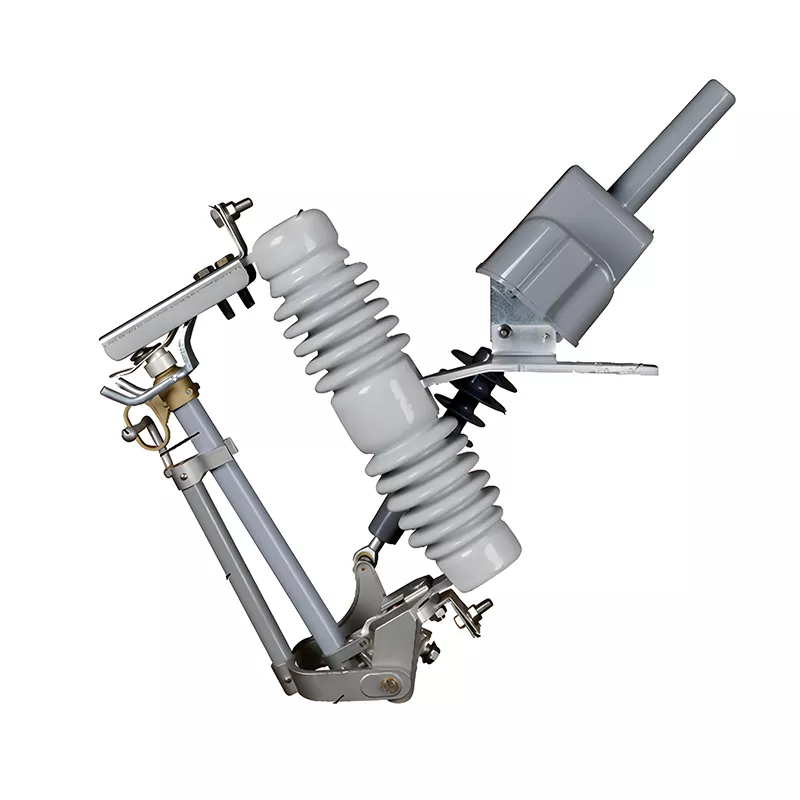

Porcelain Motorized Drop-out Fuse

The HUAJIDIAN Porcelain Motorized Drop-out Fuse is an outdoor high-voltage dedicated protection device adapted to 10kV distribution network systems, mainly used for core protection of pole-mounted distribution transformers, high-voltage line terminals, and branches. When an overload or short-circuit fault occurs on the line, the device's built-in high-precision copper-silver alloy fuse melts quickly. Relying on the dual action of gravity and the built-in spring, the fuse tube automatically drops, forming a clear and intuitive visible break point.

Compared to traditional drop-out fuses, this product boasts stable fuse characteristics and reliable arc-extinguishing performance. Equipped with an anti-misoperation structure, it can quickly cut off faults and protect power equipment, while also serving as an isolation point to ensure safe line maintenance. Balancing grid operation stability and personnel safety, it is a high-performance, cost-effective core device for 10kV distribution network fault protection.

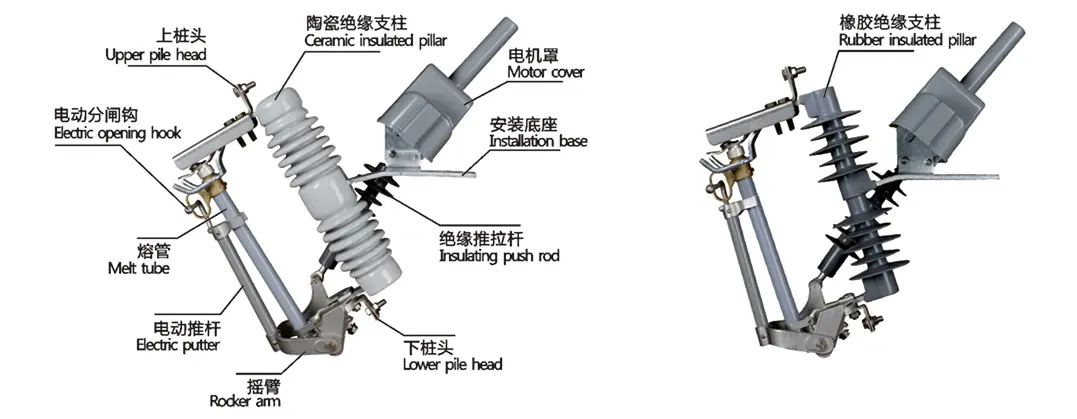

Structural representation

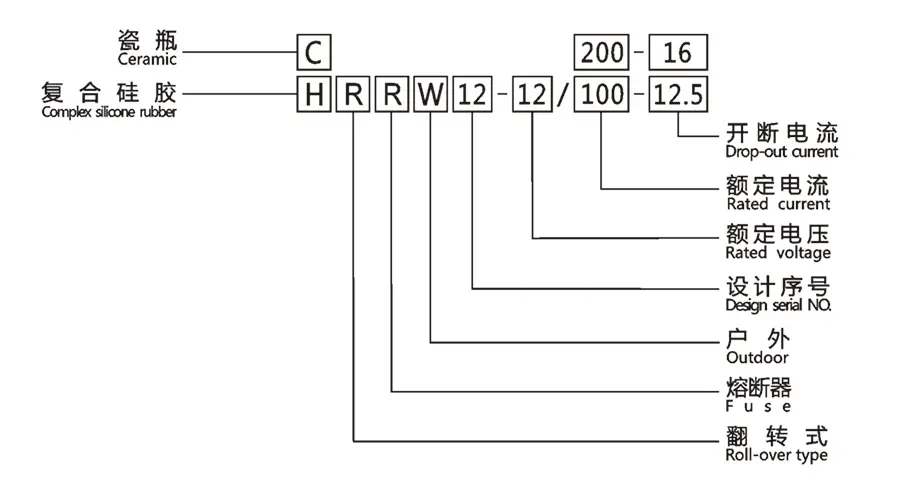

Type introduction

Core Product Advantages

1. Excellent Insulation Performance, Adaptable to Complex Outdoor Environments

Utilizing high-strength integral porcelain insulators with a large creepage distance, it possesses extremely strong resistance to pollution flashover, aging, and weathering. Supporting optional Class III/Class IV pollution protection levels, it can stably adapt to various complex outdoor scenarios such as high and low temperatures, dust, fog, high altitudes, and heavy pollution. The dense insulator structure is not prone to cracking or deformation during long-term operation, eliminating insulation failure issues.

2. Reliable Arc Extinguishing, Precise and Safe Fault Cut-off

The Porcelain Motorized Drop-out Fuse features a built-in independent gas-generating arc-extinguishing structure that absorbs and extinguishes the tripping arc in a very short time, completely preventing arc reignition and accidental reclosing, ensuring a safe and reliable one-time tripping operation. The matching copper-silver alloy fuse has precise and stable fusing parameters, sensitively responding to minor overloads and sudden short-circuit faults, eliminating accidental melting and failure to operate.

3. Convenient Installation, Extremely Low Maintenance Costs

Adopting a universal structural design, it can be directly adapted to conventional distribution crossarms on the market, requiring no complex on-site modifications, making installation and commissioning efficient and quick. The product structure is simple and compact, and fuse replacement is easy, requiring no specialized precision equipment for maintenance, significantly reducing on-site labor and material costs, resulting in extremely high long-term cost-effectiveness.

4. Safe Isolation, Eliminating the Risk of Misoperation

After a faulty drop, the device forms a clearly visible break, functioning as a disconnecting switch, providing a standardized and safe power disconnect point for line maintenance, fault diagnosis, and equipment replacement. It is equipped with a dedicated anti-misoperation structure, effectively avoiding the risks of accidental closing and malfunction caused by human error and external environmental interference, comprehensively ensuring the personal safety of maintenance personnel.

Main Technical Parameters

Application Scenarios

1. Primary Side Protection of Distribution Transformers

As the main protection device for 10kV pole-mounted distribution transformers, the Porcelain Motorized Drop-out Fuse can quickly disconnect transformer overload and short-circuit faults, preventing equipment burnout and damage, minimizing the impact of faults, and ensuring the safe and stable operation of power equipment.

2. Urban and Rural Power Grid Renovation Projects

Suitable for remote rural power grids and newly built or renovated distribution lines, it requires no complex power supply and control systems, is simple to operate, has low investment costs, and perfectly adapts to the dispersed and wide-coverage characteristics of rural power grids.

3. High-Voltage Line Protection in Industrial Parks

Used for the terminal and branch protection of 10kV high-voltage distribution lines in factory areas, in conjunction with line sectionalizing switches, it can quickly achieve fault location and isolation, avoiding large-scale power outages in factory production lines and ensuring stable power supply for industrial production.

Practical Application Case

1. Case Background

A county-level rural power grid renovation project in North China in 2025. The local power lines were scattered, and outdoor weather conditions such as thunderstorms, sandstorms, and low temperatures were frequent, making high-altitude fault inspection difficult. Existing ordinary drop-out fuses had poor anti-pollution performance and low fault identification capabilities, easily leading to arc reignition and false line tripping, resulting in delayed maintenance and poor power supply stability.

2. Application Solution

The project purchased HUAJIDIAN 12kV/200A four-level anti-pollution Porcelain Motorized Drop-out Fuse in bulk, installing it on the primary side of 86 pole-mounted transformers and at the terminals of 32 branch lines within the area. The fuse specifications were customized according to the transformer capacity on site, and dedicated insulated operating rods and spare fuses were provided to adapt to complex outdoor conditions.

3. Application Results

The equipment operated stably for a year under extreme weather conditions such as thunderstorms and low temperatures, with accurate and error-free protection actions and no arc reignition or insulation failure issues. The intuitive drop angle allows maintenance personnel to quickly locate faults on the ground, eliminating the need for pole climbing and improving troubleshooting efficiency by 60%. The simplified replacement structure reduces daily maintenance costs by 45%, completely solving the pain points of difficult fault handling and high maintenance costs in rural power grids, gaining high recognition from power grid maintenance units.

Installation and Maintenance Instructions

1. Installation Requirements

The equipment should be fixedly installed on an outdoor distribution crossarm. The installation height and spacing must meet the 10kV distribution network safety distance standards. The installation location should have a clear view, facilitating observation of equipment status and manual operation. Installation in harsh environments with strong vibrations, corrosive gas accumulation, or long-term water accumulation is strictly prohibited.

2. Post-Installation Inspection

After installation, check the flexibility of the fuse tube to ensure there is no jamming; confirm that the contact connection is secure and the drop angle meets the design standard of 65°±5° to ensure normal drop in case of a fault. Simultaneously, verify that the fuse specifications match the transformer capacity to avoid equipment failure caused by parameter mismatches.

3. Routine Maintenance

Regularly clean dust and dirt from the insulator surface to prevent flashover accidents; routinely check the corrosion of mechanical transmission components and the deformation of fuse tubes, and replace aged or damaged parts promptly. After extreme weather events such as thunderstorms, strong winds, and blizzards, a special inspection of the equipment is required to identify potential safety hazards in advance.

Optional Configurations and Customization Services

1. Parameter Customization: Rated current, short-circuit breaking capacity, and pollution protection level can be customized according to the user's line and transformer parameters;

2. Function Upgrade: Optional models with load breaking function are available to achieve safe opening and closing operations under load conditions;

3. Material Upgrade: Composite insulator versions are available, with enhanced aging resistance and flashover resistance, suitable for high-altitude and heavily polluted areas;

4. Matching Accessories: Customized insulating operating rods, full-specification fuses, and on-site installation guidance are available.

FAQ

Q1: How to solve the problem of frequent fuse blowing or failure to operate during the use of Porcelain Motorized Drop-out Fuse?

A1: Frequent fuse blowouts are often caused by mismatched fuse current specifications or long-term circuit overload. Equipment failure to operate is generally due to fuse tube jamming or aging of the mechanical structure. It is recommended to first check whether the fuse specifications match the transformer capacity, regularly clean transmission components, replace aging fuses, and ensure smooth fuse tube movement to effectively solve these problems.

Q2: What are the core advantages of HUAJIDIAN products compared to traditional ordinary drop-out fuses?

A2: The core advantages are mainly threefold: First, the use of copper-silver alloy fuses ensures precise fusing parameters and more sensitive fault response; second, the built-in gas-generating arc-extinguishing structure prevents arc reignition, significantly improving operational safety; third, the gravity + spring dual drop-out structure provides stable operation and a clear drop angle, allowing for troubleshooting without pole climbing, reducing maintenance difficulty and cost, and offering a significantly higher overall cost-effectiveness than traditional products.
