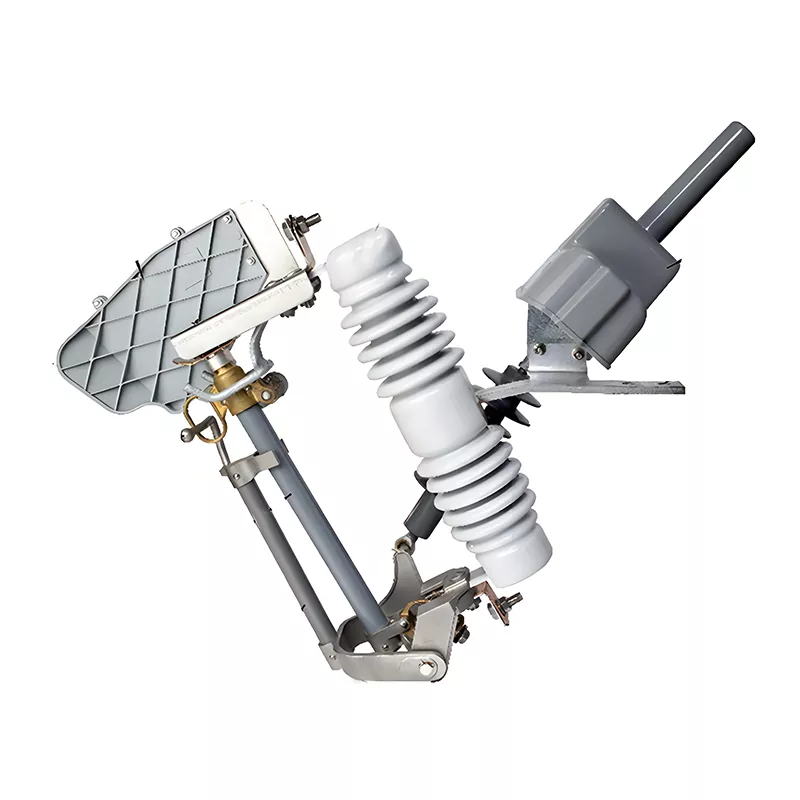

Load Break Silicone Motorized Drop-out Fuse

The HUAJIDIAN 12kV Load Break Silicone Motorized Drop-out Fuse is a core outdoor high-voltage protection device. Utilizing high-strength ceramic insulation and an optimized mechanical structure, it is suitable for outdoor pole-mounted installation. The device can accurately respond to line overload and short-circuit faults, quickly cutting off the fault current. The fuse automatically drops to form a clear break, comprehensively ensuring the operational safety of lines, transformers, and related equipment.

HUAJIDIAN has long been deeply involved in the power transmission and distribution equipment field, specializing in drop-out fuses, general-purpose fuses, disconnect switches, and other power-related products. All products undergo multiple rigorous standardized tests to control quality from the source, ensuring adaptability to various complex power grid conditions.

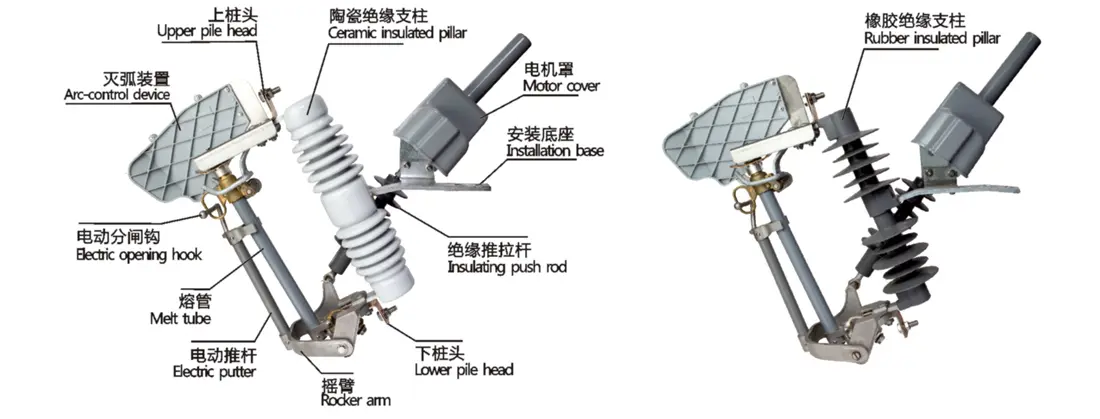

Structural representation

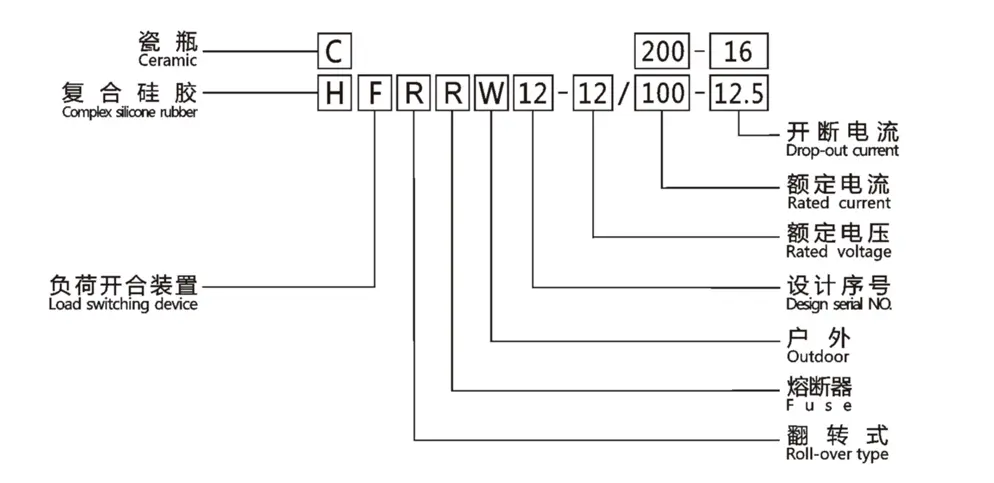

Type introduction

Core Product Parameters

Structural Design Advantages

The Load Break Silicone Motorized Drop-out Fuse adopts a mature split drop-out structure. The top is equipped with a metal end cap and connecting ring, ensuring a secure connection with the line conductors and preventing loosening and power outages caused by prolonged outdoor exposure. The bottom is connected to a metal bracket via a precision rotating shaft structure, ensuring smooth and reliable fuse drop during fault tripping. The equipment is equipped with a reinforced metal operating ring and bracket, allowing maintenance personnel to directly perform live work, inspections, and replacements without complex auxiliary equipment, making operation convenient and efficient.

Fault Protection Principle

The fuse tube contains a highly sensitive dedicated fuse element. When an overload or short-circuit fault occurs in the line, the fuse element melts quickly. The gas-generating material inside the fusible tube instantly extinguishes the fault arc, preventing safety accidents such as high-voltage arc leakage and breakdown. After the arc is extinguished, the fusible tube automatically falls due to gravity, forming a clearly visible insulation break, completely isolating the faulty section and providing safe working conditions for line maintenance and fault diagnosis.

Core Product Advantages

1. Rapid Current Interruption, Comprehensive Equipment Protection

Possesses millisecond-level fault response capability, quickly interrupting overload and short-circuit fault currents, effectively protecting downstream distribution transformers, cable branch boxes, capacitor banks, and other core power equipment, significantly reducing equipment burnout and line outage losses caused by power grid faults.

2. Visible Faults, Simple and Efficient Maintenance

The falling state of the fusible tube is clearly visible, allowing maintenance personnel to quickly locate the fault point, greatly improving inspection and fault diagnosis efficiency. The product structure is streamlined and compact; fusible tube replacement requires no special tools or high operational barriers, and can be completed quickly manually, effectively reducing maintenance time and labor costs.

3. Strong Weather Resistance, Adaptable to Complex Working Conditions

The Load Break Silicone Motorized Drop-out Fuse uses high-strength ceramic insulation material, offering excellent insulation performance. It also possesses anti-aging, anti-corrosion, and high/low temperature resistance characteristics, allowing for stable operation in harsh outdoor environments such as heavy rain, blizzards, strong winds, industrial pollution, and coastal salt spray. It boasts a low failure rate and long service life, making it suitable for various urban and rural outdoor overhead power grid scenarios.

Application Scenarios

1. Overload and short-circuit protection for 10kV overhead distribution main lines and branch lines

2. Primary side safety protection for urban and rural distribution transformers

3. Fault isolation and protection for distribution equipment such as capacitor banks and cable branch boxes

4. Protection of outdoor overhead lines for rural power grid renovation, urban power grid upgrades, and new energy supporting projects

Engineering Application Cases

In the 2025 Anhui Urban and Rural Distribution Network Upgrade Project, the project team adopted HUAJIDIAN 12kV Load Break Silicone Motorized Drop-out Fuse in batches to replace aging line protection equipment, primarily for the primary side protection of rural 10kV overhead lines and distribution transformers. The project area is characterized by frequent rain and humidity, severe dust pollution, and intense monsoon winds, resulting in complex and harsh outdoor operating conditions.

Since its commissioning six months ago, the product has accurately responded to short circuits and overload faults caused by lightning strikes and foreign object entanglement, successfully isolating eight faults and effectively preventing large-scale power outages and transformer burnouts. Thanks to its visible drop-out design, maintenance personnel can locate and troubleshoot faults within an average of 10 minutes, significantly improving grid maintenance efficiency. The product's stable and reliable adaptability to various operating conditions has earned high praise from the project's construction and maintenance teams.

FAQ

Q1: What working environments is the HUAJIDIAN 12kV Load Break Silicone Motorized Drop-out Fuse suitable for?

This product is specifically designed for outdoor pole-mounted applications and is suitable for various conventional and harsh operating conditions in 10kV distribution systems. Utilizing a high-strength, anti-aging ceramic insulation structure, it can stably adapt to complex outdoor environments such as rain, snow, high temperatures, dust, and coastal salt spray. It is widely applicable to urban distribution networks, rural power grid upgrades, and new energy supporting lines, demonstrating extremely strong environmental adaptability.

Q2: Does product installation and subsequent maintenance require specialized equipment and complex technology?

No specialized equipment or high-threshold technology is required. The product adopts a user-friendly and simplified structure, making installation convenient. Routine inspections only require visual checks of the fuse tube's condition. Damaged fuse elements can be replaced manually without complex tools, significantly reducing the cost and difficulty of power grid maintenance.

Q3: What standards does the Load Break Silicone Motorized Drop-out Fuse adhere to, and is its quality guaranteed?

All HUAJIDIAN drop-out fuses strictly adhere to IEC international standards and GB national standards. Before leaving the factory, they undergo rigorous testing for insulation performance, fault breaking, and mechanical operation. As a professional manufacturer and supplier, the brand supports customized selection and full-cycle quality traceability, coupled with long-term after-sales support, ensuring long-term stable operation of the equipment.
