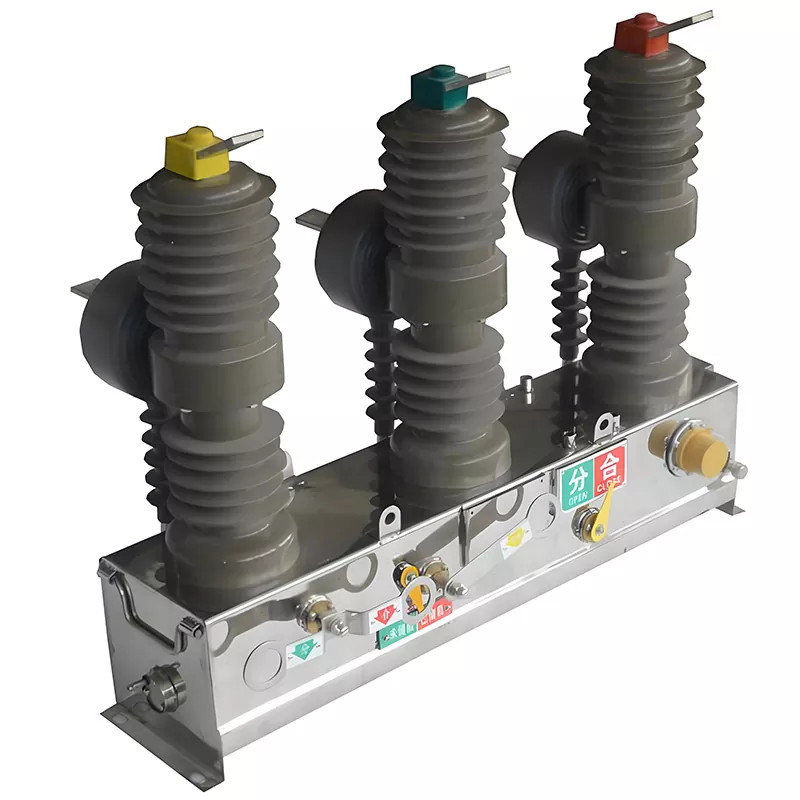

24kV Pole-Mounted Vacuum Circuit Breaker

As a premier manufacturer of medium-voltage power equipment, HUAJIDIAN specializes in the R&D and production of outdoor pole-mounted vacuum circuit breakers. Engineered for harsh outdoor conditions, this 24kV Pole-Mounted Vacuum Circuit Breaker overcomes the limitations of traditional models—such as bulky size, heavy weight, and poor environmental resilience. It efficiently interrupts grid overloads and short-circuit currents while operating reliably in extreme environments characterized by high/low temperatures, high humidity, and heavy pollution. The product effectively fills the market gap for highly reliable, low-maintenance, and durable protection equipment, finding widespread application in power infrastructure projects across China and overseas.

Key Product Features

1. Suitable for Harsh Environments; Maintenance-Free Operation

The unit is constructed using specialized rust-proof, corrosion-resistant, and UV-resistant materials. It offers excellent resistance to condensation and pollution flashover, ensuring stable operation under extreme outdoor conditions—including temperatures ranging from -30°C to +70°C, high humidity, coastal salt spray, and heavy industrial pollution. Unlike traditional breakers that require cumbersome maintenance routines (such as periodic cleaning, rust prevention, and insulation testing), this product operates maintenance-free over the long term, significantly reducing the daily workload and costs for grid operators.

2. Compact, Lightweight Structure; Lower Total Cost

Optimized structural design makes this product smaller and lighter than traditional equipment of the same specifications. This drastically reduces transportation costs and simplifies on-site hoisting, making it suitable for challenging installation scenarios such as narrow poles or confined ground spaces. Its streamlined installation structure shortens construction timelines, offering an efficient, cost-effective deployment solution for various grid renovation projects—earning widespread recognition from global supplier partners and end-users alike.

3. High-efficiency vacuum arc extinguishing and reliable power supply protection

Equipped with mature core vacuum arc-extinguishing technology, the device features rapid breaking speeds and strong arc-suppression capabilities. It can quickly and precisely interrupt grid overload and short-circuit fault currents, effectively preventing equipment burnout, line tripping, and large-scale power outages. Operation is free from secondary pollution, meeting green power infrastructure standards and providing full-lifecycle safety protection for power distribution networks.

4. Extra-long service life and stable operational performance

The device’s core conductive and mechanical components utilize high-strength, premium materials combined with precision assembly processes. It boasts a mechanical lifespan of 10,000 operations and can withstand 30 full-capacity short-circuit breaking operations. Designed to handle the frequent switching operations required by power grids, it ensures long-term stable performance, eliminating the issues of performance degradation and frequent replacement associated with traditional equipment.

Key Application Scenarios

1. Substation distribution systems

Used for the protection and intelligent operation of substation incoming and outgoing circuits, enabling real-time monitoring and rapid isolation of line faults.

2. Industrial and mining power suppl

Provides stable load switching and short-circuit protection for large factories, mines, and industrial parks, ensuring continuous and stable power for industrial production.

3. Rural and remote area power grids

Suited to the frequent operation and harsh environmental conditions of rural grids; addresses issues such as low reliability and high failure rates in remote areas, facilitating the upgrading and modernization of rural power networks.

Detailed Technical Parameters

Real-world Engineering Application Cases

Case 1: Rural Power Grid Upgrade Project in East China

An automation upgrade project for a rural power grid in Anhui Province deployed 86 units of the HUAJIDIAN 24kV pole-mounted vacuum circuit breaker. The local rural grid is characterized by widely dispersed lines, significant load fluctuations, and harsh outdoor operating conditions. Since deployment, the equipment has reliably withstood extreme weather—including high-temperature thunderstorms in summer and low-temperature frost in winter—while enabling automatic fault identification, isolation, and service restoration. This has effectively resolved issues such as frequent line tripping and difficult fault maintenance. The project improved local power supply reliability from 99.92% to 99.98%, with the equipment operating for 18 consecutive months with zero failures and zero maintenance requirements, significantly alleviating the operational burden on the power supply utility.

Case Study 2: Power Distribution Protection Retrofit Project for an Industrial Park

In a retrofit project for the 24kV power distribution network of a large manufacturing industrial park in Zhejiang, aging SF6 circuit breakers were entirely replaced with HUAJIDIAN 24kV pole-mounted vacuum circuit breakers. Given the park's heavy industrial loads and frequent equipment start-stop cycles, the requirements for equipment stability and durability were exceptionally high. The new equipment features rapid arc-extinguishing capabilities and robust short-circuit resistance, effectively eliminating hazards associated with arcing and frequent malfunctions found in the old units. Since commissioning, the system has reliably withstood peak load surges and operated without a single failure, saving the park over 120,000 RMB annually in O&M and replacement costs while ensuring a continuous, stable power supply for industrial production lines.

FAQ

Q1: What extreme operating conditions can the HUAJIDIAN 24kV pole-mounted vacuum circuit breaker withstand?

This product is specifically optimized for harsh outdoor environments. It utilizes materials that are rust-proof, corrosion-resistant, UV-resistant, and condensation-resistant, enabling stable operation under extreme conditions such as freezing temperatures (-30°C), intense heat and sun exposure (+70°C), coastal salt spray, and heavy industrial pollution. The product has passed professional environmental simulation tests, demonstrating minimal performance degradation and requiring no routine maintenance during long-term operation.

Q2: Does the product support customization and on-site installation guidance?

Yes. HUAJIDIAN offers personalized customization for the current specifications and functional modules of the 24kV pole-mounted vacuum circuit breaker to meet the diverse requirements of various power grids, industrial sites, and overseas standard-compliant projects. We also provide a comprehensive one-stop service package—including pre-sales technical consultation, on-site installation guidance, O&M training, and after-sales support—to ensure the equipment is commissioned and operates efficiently and reliably.
