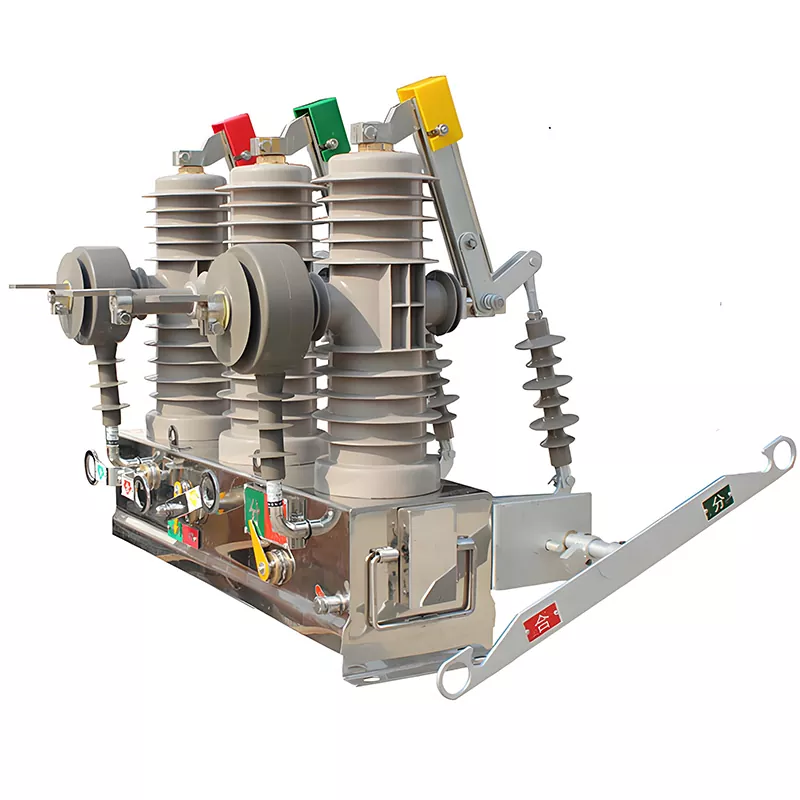

11kV Pole-Mounted Vacuum Circuit Breaker

The HUAJIDIAN 11kV Pole-Mounted Vacuum Circuit Breaker represents an evolution designed to address the pain points of traditional outdoor switches—namely high failure rates, cumbersome maintenance, and limited functionality. With a rated voltage of 12kV, it is compatible with three-phase AC 50Hz outdoor distribution networks. Moving away from traditional spring mechanisms, it adopts an advanced permanent magnet operating mechanism featuring a streamlined structure and fewer wear-prone parts; combined with a vacuum interrupter, this ensures stable and reliable performance. The product integrates an intelligent measurement, control, and protection system supporting various communication methods (such as GPRS and fiber optics), enabling automatic fault identification, remote control, real-time data monitoring, and precise fault isolation, thereby meeting the requirements for unmanned operation in distribution network automation (FA).

Core Product Advantages

1. Reliable Structure, Ultra-low Maintenance Costs

By utilizing a permanent magnet operating mechanism, the design completely eliminates the complex transmission structures found in traditional spring mechanisms. With fewer components and no wear-prone elastic parts, it fundamentally resolves issues related to mechanical fatigue and high failure rates common in traditional equipment.

2. Exceptional Longevity, Suitable for Frequent Operation

The 11kV Pole-Mounted Vacuum Circuit Breaker boasts a mechanical lifespan of up to 30,000 operations. It withstands frequent opening and closing cycles over the long term, making it perfectly suited for smart distribution grid applications involving automatic reclosing and high-frequency switching. This prevents equipment damage caused by frequent operation and ensures the continuous, stable performance of the grid automation system.

3. Robust Fault Handling, Safe and Stable Operation

With a rated short-circuit breaking current of 25kA, the unit can reliably perform 30 consecutive short-circuit breaking operations. Equipped with a built-in microprocessor-based protection unit, it offers a comprehensive suite of protection functions—including three-stage directional overcurrent protection with voltage blocking, zero-sequence protection, and automatic reclosing. It rapidly identifies and isolates grid faults, prevents fault propagation, and reinforces the safety of grid operations.

4. Intelligent Integration & Remote Management

It integrates measurement, control, protection, and communication functions into a single unit, supporting remote switching (opening/closing), real-time power data monitoring, fault alarms, and data uploading. Compatible with mainstream communication modes such as GPRS and fiber optics, it seamlessly interfaces with smart grid management platforms to enable digital, visualized, and intelligent O&M (operations and maintenance) of distribution networks.

5. Adaptability to Extreme Outdoor Environments

Designed specifically for harsh outdoor conditions, it features a high protection rating and operates stably within an extreme temperature range of -40°C to +70°C. It is suitable for altitudes up to 2,000 meters and areas with Class V heavy pollution. With excellent resistance to high and low temperatures, corrosion, and dust, it adapts to diverse complex outdoor environments, including coastal regions, industrial zones, and high-altitude areas.

Application Scenarios

1. Substation Integration: Serves as the outgoing feeder switch on the 10kV side of substation main transformers, ensuring safe switching and fault protection for feeder circuits.

2. Line Retrofitting & Upgrading: Installed on distribution line poles/towers as sectionalizing or tie switches to enable segmented power supply and fault isolation.

3. General Distribution Scenarios: Suitable for power distribution control in urban smart grids, rural grid upgrades, industrial and mining enterprises, residential communities, and commercial parks.

4. High-Reliability Power Supply Scenarios: Particularly suited for areas requiring high supply reliability and distribution network automation upgrades; it rapidly isolates faulty sections and restores power to unaffected areas, significantly enhancing service quality.

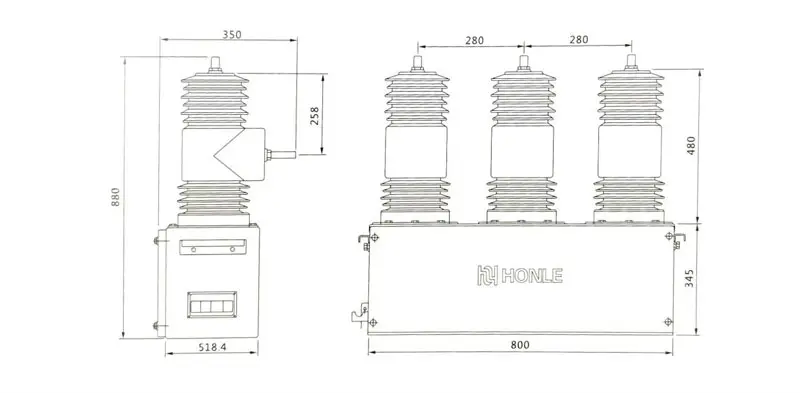

Technical Parameters

Real-World Application Case

Case: Rural Grid Automation Upgrade Project in Anhui

In 2025, Guzhen County, Bengbu City, Anhui Province, launched a rural grid automation upgrade project, deploying HUAJIDIAN 11kV pole-mounted vacuum circuit breakers in large numbers. The original local rural grid relied on traditional switchgear characterized by low automation and frequent faults; line faults resulted in widespread power outages, failing to meet the reliable electricity needs of rural residents and township enterprises.

The project employs a live-line bypass method to install this intelligent circuit breaker on key sections of distribution lines, ensuring no disruption to the power supply for local users. Leveraging the stable performance of its permanent magnet mechanism and an intelligent fault identification system, the device achieves millisecond-level fault detection, automatically isolates faulty line segments, and rapidly restores power to unaffected areas.

Following the device's deployment, the rate of power outages caused by faults on local rural grid lines dropped significantly, and regional power supply reliability rose to 99.98%. The product’s excellent resistance to low temperatures and heavy pollution makes it perfectly suited for complex rural outdoor environments; it operates maintenance-free over the long term, effectively reducing the burden of grid operations and maintenance, and successfully achieving the goal of upgrading rural smart grids.

FAQ

Q1: What are the key advantages of the permanent magnet mechanism compared to traditional spring mechanisms?

The HUAJIDIAN permanent magnet mechanism eliminates the complex transmission structures found in traditional spring mechanisms. With a streamlined internal design and no vulnerable elastic components, it fundamentally resolves issues such as material fatigue, jamming, and high failure rates associated with spring mechanisms. The device offers superior operational stability and a mechanical lifespan of up to 30,000 operations, supporting frequent switching and automatic reclosing in distribution networks. It also enables maintenance-free operation, significantly lowering long-term O&M costs for users.

Q2: Can this circuit breaker withstand harsh outdoor conditions?

Yes. This product is optimized for extreme outdoor environments, capable of stable operation across a temperature range of -40°C to +70°C and suitable for altitudes up to 2,000 meters and areas with Class V heavy pollution. With a high ingress protection rating and excellent resistance to dust, corrosion, and temperature extremes, it operates reliably in harsh settings—such as humid coastal areas, industrial zones, and alpine regions—fully meeting the requirements for long-term outdoor service.

Q3: What intelligent functions and communication methods does the 11kV pole-mounted vacuum circuit breaker support?

The product integrates a comprehensive suite of protection functions, including three-stage voltage-blocked overcurrent protection, zero-sequence protection, and automatic reclosing. It also supports remote control, real-time power data monitoring, and automatic fault alarming. In terms of communication, it supports both mainstream modes—GPRS wireless and fiber-optic wired—and integrates seamlessly with distribution network automation platforms. It enables remote intelligent device control, unattended operation and maintenance, and digital grid management, serving as a core component in smart grid infrastructure.
