11kV Medium Voltage Indoor VCB Switchgear Panel

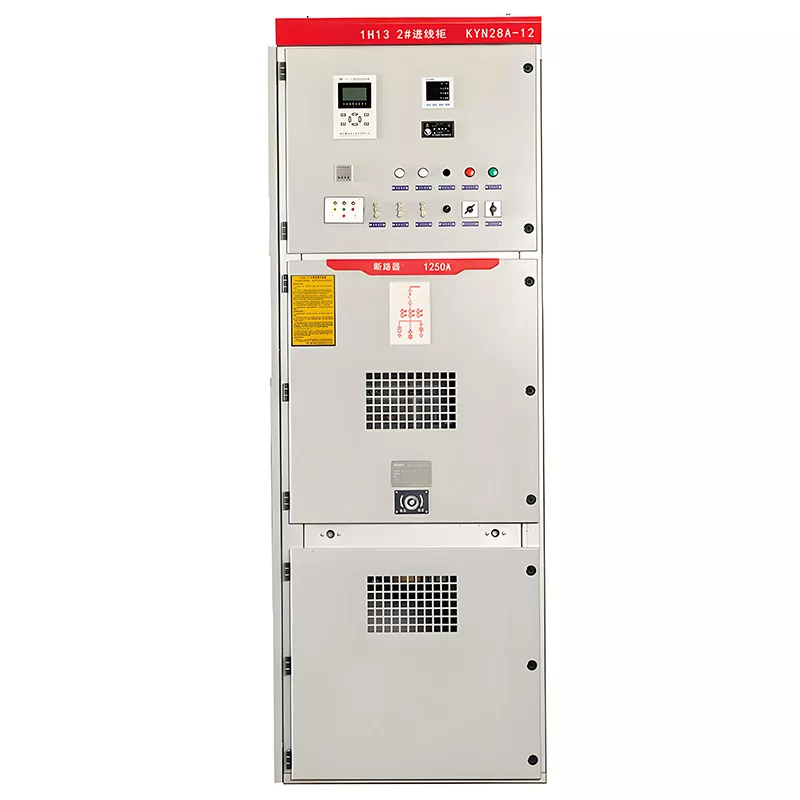

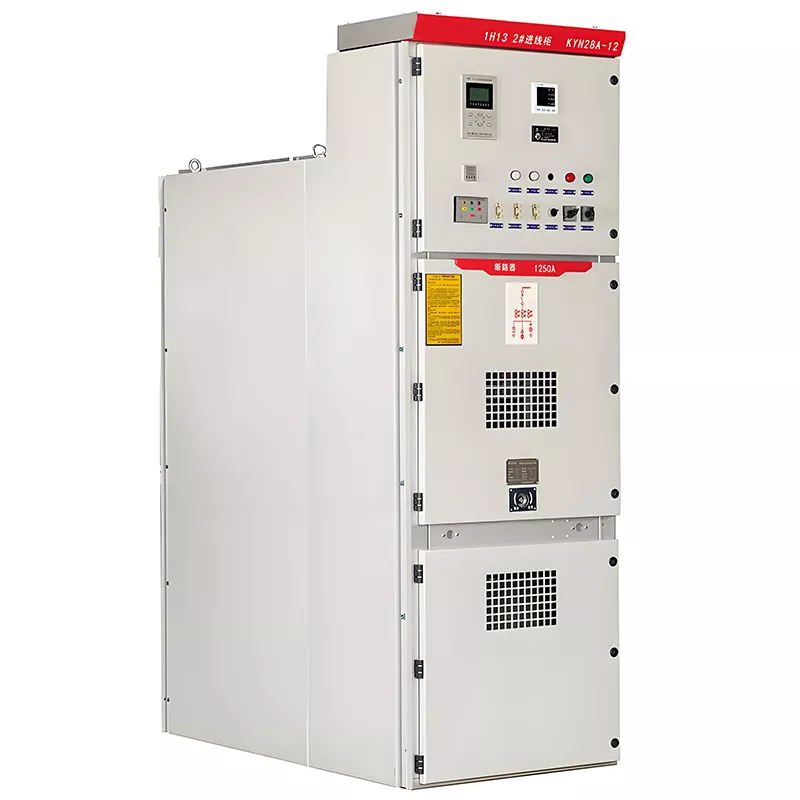

The Huajidian 11kV Medium Voltage Indoor VCB Switchgear Panel is a metal-clad, withdrawable complete power distribution assembly. It is widely utilized in power plants, industrial and mining enterprises, and substations to facilitate the reception, distribution, measurement, control, and protection of electrical energy. It is ideally suited for applications such as power transmission from small-to-medium-sized generator sets, plant and mine power distribution, and high-voltage motor starting. It is particularly well-suited for single-busbar segmented distribution projects where efficient space utilization and convenient front-access maintenance are critical requirements. The cabinet features a specialized wall-mounted structure designed for front-only maintenance access; equipped with dedicated instrument transformers, all maintenance operations can be performed entirely from the front of the cabinet.

Huajidian is a high-tech enterprise dedicated to the R&D, manufacturing, and sales of power transmission and distribution equipment, deeply rooted in the Wenzhou electrical industry hub. The company has obtained ISO9001 quality management certification and CE certification, and holds numerous product patents. In January 2026, the company held its annual summary conference; later that same year, it exhibited at the Mexico Power & Energy Show, leveraging its proprietary switchgear products to expand its presence in the Latin American market.

Key Product Advantages:

1.  Flexible Circuit Breaker Selection

The unit is compatible with domestic VS1 vacuum circuit breakers while also supporting integration with imported breakers such as the ABB VD4, Siemens 3AH5, and GE VB2. This flexibility makes it suitable for both the modernization of aging substations and the customization of new projects.

2.  Durable Cabinet Protection

The cabinet enclosure is constructed from aluminum-zinc coated steel plates, available in RAL7032 or RAL7035 color schemes. The cabinet features an overall protection rating of IP4X (with internal compartments rated at IP2X), offering effective protection against dust and splashing water to ensure high operational safety.

3. Strong Environmental Adaptability

Suitable for ambient temperatures ranging from -30°C to +50°C and installation altitudes of ≤2500m. It operates stably in humid conditions with a daily average relative humidity of ≤95% and a monthly average of ≤90%.

Applicable Standards and Technical Parameters

1. Applicable Standards

IEC298, GB3906-91, IEC62271-200

2. Electrical Parameters

3. Insulation Class

Real-World Application Case Study

Central Mexico Mining Region Power Distribution Upgrade Project (Completed in 2026)

During Huajidian’s participation in the 2026 Mexico Power Exhibition, the company signed a contract with a local medium-sized open-pit mining enterprise to supply 32 units of 11kV Medium Voltage Indoor VCB Switchgear Panels. These units were deployed to upgrade the power distribution systems in the ore beneficiation plant and the mining area substation.

The original equipment consisted of outdated oil-immersed switchgear, which occupied a large footprint, required rear-access maintenance, and was prone to insulation degradation due to moisture in the rainy and humid local environment. For this project, the client selected a front-maintenance cabinet design equipped with ABB VD4 circuit breakers; the sealed, aluminum-zinc-coated cabinet body was specifically chosen to withstand the local high-humidity climate. Following commissioning, the system allowed for localized maintenance without the need for a complete power shutdown, resulting in a 70% reduction in equipment failure rates. Consequently, the client subsequently placed an additional order for a plant expansion project.

FAQ

Q1: For the renovation of aging substations, can this Huajidian 11kV Medium Voltage Indoor VCB Switchgear Panel serve as a direct replacement for older oil-immersed switchgear?

A1: Yes, it can. The product is compatible with various circuit breakers—including the VS1, ABB VD4, and Siemens 3AH5 series—and the manufacturer can adjust the internal cabinet layout to match the original installation dimensions. This eliminates the need for extensive civil engineering modifications, thereby shortening the overall construction cycle.

Q2: Under standard operating conditions, what is the recommended maintenance cycle for the Huajidian 11kV VCB switchgear?

A2: Typically, an annual visual inspection is recommended, with high-voltage withstand tests and vacuum interrupter checks performed every 3 to 5 years. Thanks to the front-maintenance design, on-site servicing can be performed without the need to physically remove the cabinet unit.

Q3: For projects situated at high altitudes (exceeding 2000 meters), can Huajidian provide customized models tailored to those specific conditions?

A3: Standard models are suitable for altitudes up to 2,500 meters. For ultra-high-altitude projects, units can be customized with increased insulation creepage distances and upgraded withstand voltage parameters; corresponding customized factory test documentation is provided concurrently.
