GDW1-12/630-25 Indoor Earthing Switch

The HUAJIDIAN GDW1-12/630-25 Indoor Earthing Switch is an outdoor power protection device independently developed and manufactured by a professional manufacturer specializing in core components for medium-voltage power distribution networks. The product is optimized and upgraded for complex outdoor operating conditions, solving the pain points of traditional grounding switches such as poor weather resistance, limited operating modes, and unstable operation.

The equipment has a rated voltage of 12kV, a rated current of 630A, and a short-time withstand short-circuit current of 25kA. Relying on a high-strength insulation structure and highly conductive copper components, it enables visible disconnection and reliable grounding during equipment operation and maintenance, completely eliminating residual voltage hazards and ensuring the personal safety of maintenance personnel. It is a key core piece of equipment for standardized operation and maintenance of modern power distribution networks.

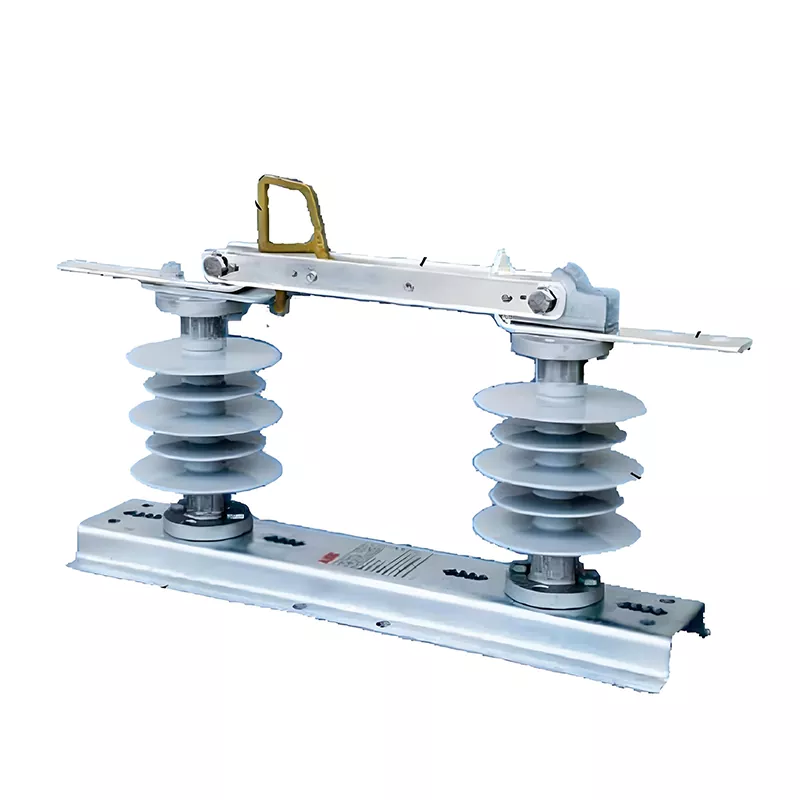

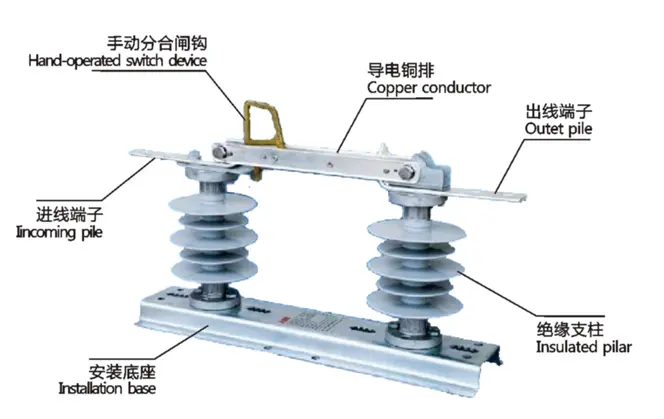

Structural representation

Type introduction

Model Definitions

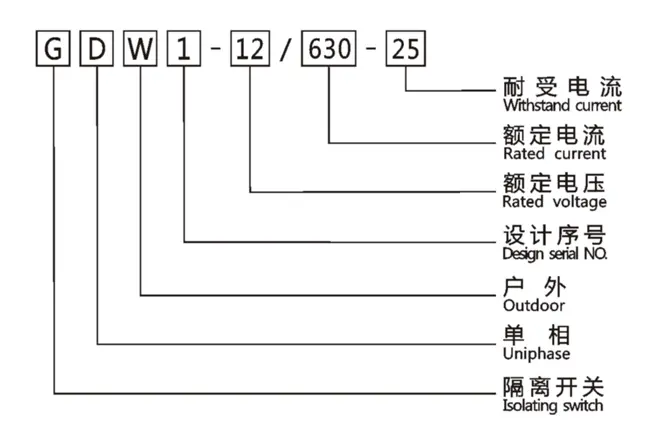

GDW1-12/630-25 The characters and numbers in the model number correspond to specific product parameters, as explained below:

- G: Disconnecting switch, representing the core functional attribute of the equipment

- D: Single-phase structure, suitable for single-phase power distribution lines

- W: Outdoor type, designed specifically for lines in open-air natural environments

- 1: Product design serial number, representing an iteratively optimized model

- 12: Rated voltage 12kV, suitable for conventional medium-voltage power distribution networks

- 630: Rated current 630A, meeting the current carrying capacity requirements of mainstream power distribution lines

- 25: Short-time withstand short-circuit current 25kA, possessing extremely strong short-circuit impact resistance

Core Product Advantages

1. Excellent electrical performance, stable and reliable conductivity

The GDW1-12/630-25 Indoor Earthing Switch uses high-purity copper busbars, which are highly conductive, wear-resistant, and durable. Long-term operation results in no heat accumulation and no power attenuation, ensuring efficient and stable current transmission. Equipped with high-performance insulated supports, the minimum creepage distance reaches 380mm, providing excellent high-voltage insulation and effectively isolating 12kV high-voltage circuits, preventing leakage and flashover accidents, and ensuring safe operation of the equipment under long-term high-voltage conditions.

2. Dual-mode operation design, flexible, intelligent, and efficient

Breaking through the limitations of traditional equipment's single manual operation, it supports both manual and electric operation modes. A dedicated operating hook is standard, making on-site manual switching safe and convenient; it is compatible with 12V/24V DC motor voltages and can be equipped with an electric operating mechanism for remote automated control. The dual-mode design significantly improves maintenance efficiency, reduces the risks of manual operation, and enhances the level of intelligent power grid operation and maintenance.

3. Extremely weather-resistant, adaptable to complex operating conditions

Having undergone rigorous environmental adaptation testing, the equipment can operate normally in a wide temperature range of -30℃ to 45℃, unaffected by extreme cold in the north or high temperatures in summer. It possesses excellent anti-icing capabilities, tolerating 10mm thick ice accumulation, preventing equipment failure caused by icy and snowy weather. Suitable for areas at altitudes of 3000m and below, this switch is reliably adapted to complex geographical and meteorological environments such as plateaus and mountains, boasting high durability and a long service life.

Main Technical Parameters

Application Scenarios

The HUAJIDIAN GDW1-12/630-25 Indoor Earthing Switch is a core safety device for medium-voltage power distribution networks, widely used in outdoor sections of overhead transmission lines, urban and rural power distribution networks, and substation supporting facilities. The device provides a clear visual disconnection point during routine maintenance, equipment upkeep, and emergency repairs, achieving complete physical isolation of the circuit, thoroughly eliminating residual electrical charge, and comprehensively protecting the personal safety of maintenance personnel.

With its excellent cold resistance, icing resistance, and high-altitude adaptability, the product is particularly suitable for severely cold northern regions, plateaus and mountains, and areas with heavy snow and ice cover. It can stably cope with complex climates and geographical environments, significantly reducing equipment failures caused by severe weather and improving the overall operational stability of the power grid.

Real-world Application Case Study

In 2023, a batch of HUAJIDIAN GDW1-12/630-25 Indoor Earthing Switches were successfully applied to the 12kV distribution network upgrade project in Liupanshui, Guizhou Province. This area has an altitude of nearly 2800m, with severe winter temperatures and frequent seasonal icing. Traditional grounding switches are prone to problems such as poor icing resistance, low-temperature failures, and inconvenient operation, posing significant risks to line maintenance.

After the project upgraded and replaced the equipment with HUAJIDIAN products, the equipment can stably withstand local extreme cold weather of -25℃ and 8-10mm icing conditions. Dual-mode operation significantly improves the efficiency of winter line maintenance and emergency fault handling. Within one year of equipment commissioning, there were zero line maintenance safety incidents, and the equipment failure rate decreased by more than 85%. The product's stable performance and superior environmental adaptability were highly recognized by the project owner, making it a benchmark case for safety upgrades in high-altitude, frigid distribution networks.

FAQ

Q1: What are the advantages of this GDW1-12/630-25 Indoor Earthing Switch compared to ordinary outdoor disconnect switches?

The core advantages are threefold: First, it adopts a high-purity copper conductive structure and optimized insulation design, resulting in stronger 25kA short-circuit withstand capability and higher insulation safety; second, it supports both electric and manual operation modes, enabling remote intelligent control and overcoming the limitation of traditional equipment that can only be operated manually; third, its weather resistance has been significantly upgraded, allowing stable operation in environments as low as -30℃ and with 10mm of icing, far exceeding the environmental adaptability of ordinary products.

Q2: How versatile is the electric operating mechanism of the device, and is installation convenient?

Highly versatile and easy to install. The product is compatible with universal 12V/24V DC voltage, adopts standardized interfaces and a modular structure, and the electric mechanism is easy to disassemble and assemble without complex modifications or professional debugging. Users can freely select or disassemble the electric mechanism according to their operation and maintenance needs, and it is compatible with mainstream medium-voltage power distribution network automatic control systems, simplifying later maintenance.

Q3: What after-sales and warranty services does HUAJIDIAN provide for this product?

HUAJIDIAN provides full-cycle quality services, and all products undergo rigorous testing before leaving the factory, meeting power industry standards. The brand offers long-term warranties, professional technical guidance for installation and commissioning, and 24-hour after-sales consultation. Customized adaptations can also be provided for special operating conditions such as ultra-high altitudes and ultra-low temperatures to meet the operation and maintenance needs of power grids in different regions.
