33kV Pole-Mounted Vacuum Circuit Breaker

The HUAJIDIAN 33kV pole-mounted vacuum circuit breaker is a high-performance medium-voltage switchgear designed for 10kV–33kV outdoor distribution systems. It is primarily used for the protection and control of substation outgoing feeders, high-voltage incoming lines for industrial and mining enterprises, and branch lines in residential areas.

The product innovatively integrates a vacuum interrupter with an intelligent controller and features built-in comprehensive grid protection logic. It can isolate faulty branches independently without disrupting the power supply to the main line, thereby effectively minimizing the scope of power outages and enhancing the operational stability of the distribution network. It serves as a core piece of infrastructure for modern intelligent distribution networks.

Core Product Parameters

HUAJIDIAN strictly adheres to industry manufacturing standards, and the equipment parameters are fully compatible with the operational requirements of outdoor three-phase AC distribution systems. Key parameters are as follows:

1. Rated Voltage: 12kV (suitable for 10kV urban/rural distribution lines; compatible with 33kV pole-mounted operating conditions)

2. Rated Current: 630A, 1000A, 1250A (multiple specifications to meet varying load demands)

3. Rated Short-Circuit Breaking Current: 20kA, 25kA (capable of interrupting severe grid faults)

4. Applicable System: 50Hz three-phase AC outdoor distribution system

5. Operation Mode: Dual manual/electric control; supports intelligent remote operation

Key Structural and Performance Features

1. Integrated and Optimized Structural Design

The 33kV pole-mounted vacuum circuit breaker features a built-in high-performance vacuum interrupter responsible for load switching and short-circuit current interruption; it offers rapid arc extinction with no external arc leakage. Equipped with a spring-charging handle and a manual open/close handle, along with red/green status indicators, the device allows for clear, direct visual monitoring of its operational state. The built-in spring-charging mechanism ensures stable energy storage and reliable switching operations, meeting the demands of frequent, long-term use.

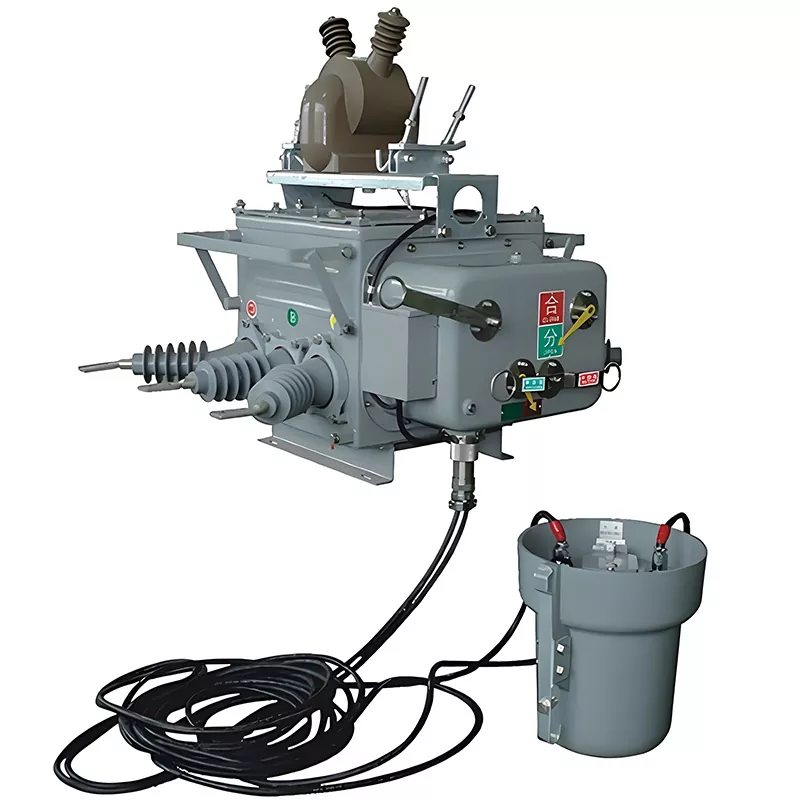

A brown insulated-housing voltage transformer (PT) is mounted on top of the unit to provide power and line voltage sampling for the downstream controller. The unit connects to the controller via a specialized black waterproof cable, transmitting real-time current and voltage signals while supplying stable operating power to the control system.

2. Superior Outdoor Environmental Adaptability

The 33kV pole-mounted vacuum circuit breaker features a fully sealed, integrated enclosure design that is waterproof and rust-resistant. Its external silicone housing is dirt-repellent and UV-resistant, capable of withstanding extreme outdoor conditions such as high temperatures, heavy rain, and strong winds. Designed for long-term pole-mounted operation with minimal maintenance requirements, it significantly reduces grid operation and maintenance costs.

3. Intelligent Integrated Protection Logic

Acting as an intelligent "watchdog" for the distribution network, the device incorporates proven protection logic for zero-sequence grounding and overcurrent conditions. It supports rapid tripping, time-delayed overcurrent protection, undervoltage tripping, and automatic reclosing. In the event of a single-phase ground fault or phase-to-phase short circuit on a user branch line, the device automatically trips within milliseconds to isolate the faulty section. This enables sectionalized protection, preventing widespread power outages on the main line.

Core Functional Advantages

1. Precise Fault Isolation for Enhanced Grid Stability

Designed to address common faults in urban and rural distribution lines, the device precisely locates and independently isolates faulty branches. Once the faulty line is isolated, power supply to the main line continues uninterrupted. This effectively minimizes outage duration and scope, significantly improving power supply reliability for residential areas, industrial parks, and rural grids.

2. Multi-dimensional Remote Intelligent Control

The accompanying intelligent controller offers comprehensive functionality, supporting remote switching, automatic fault reporting, and real-time data transmission. Compatible with three mainstream communication methods—4G, fiber optics, and power line carrier (PLC)—it integrates seamlessly with distribution automation master stations, enabling unmanned operation, remote monitoring, and intelligent management of the pole-mounted equipment.

3. Compliance with International Standards & Customization Support

As a professional manufacturer of power distribution equipment, HUAJIDIAN offers personalized customization services tailored to the electrical standards and grid operating specifications of various countries. We support parameter adjustments, functional optimizations, and structural upgrades, providing one-stop, exclusive solutions for global users.

Typical Application Scenarios

1. Urban and Rural Distribution Lines: Boundary protection for 10kV overhead lines; serves as the ownership demarcation switch for branch lines serving residential communities and factories.

2. Grid Automation Upgrades: Sectionalizing protection and intelligent upgrades for aging distribution networks, enabling automatic fault diagnosis and isolation on distribution lines.

3. Industrial and Mining Power Distribution: High-voltage incoming line protection for industrial parks, mines, and petrochemical projects, ensuring the safe and stable operation of industrial equipment.

4. Substation Distribution Systems: Feeder protection for small and medium-sized substations, meeting the automation requirements of modern distribution networks.

Real-World Project Case Study

1. Project Background

In 2024, a rural grid automation upgrade project was launched in a region of East China. The local rural distribution lines were widely dispersed, and branch line faults occurred frequently; a single-point fault could easily trigger a blackout across the entire area, severely impacting residential electricity use and rural industrial production.

2. Application Solution

The project involved the batch deployment of HUAJIDIAN 33kV pole-mounted vacuum circuit breakers at branch line boundaries and along main distribution line sections. Fiber-optic connections to the local distribution automation master station enabled real-time monitoring of line voltage, current, and operating status, as well as intelligent automatic fault tripping and reclosing operations.

3. Project Results

Following equipment commissioning, the response speed for isolating line faults improved by 90%, and branch faults no longer disrupted power supply to the main line. The average annual number of power outages in the regional grid dropped from six to fewer than one, and the manual workload for grid operations and maintenance decreased by 70%. This successfully resolved the issues of frequent faults and difficult maintenance associated with the aging rural grid, effectively completing the intelligent upgrade.
