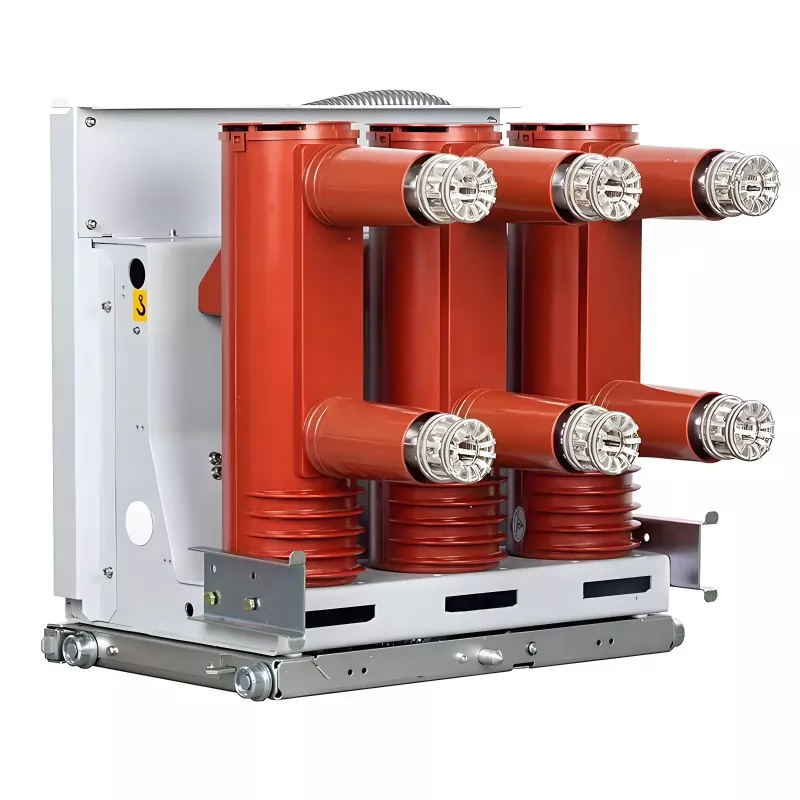

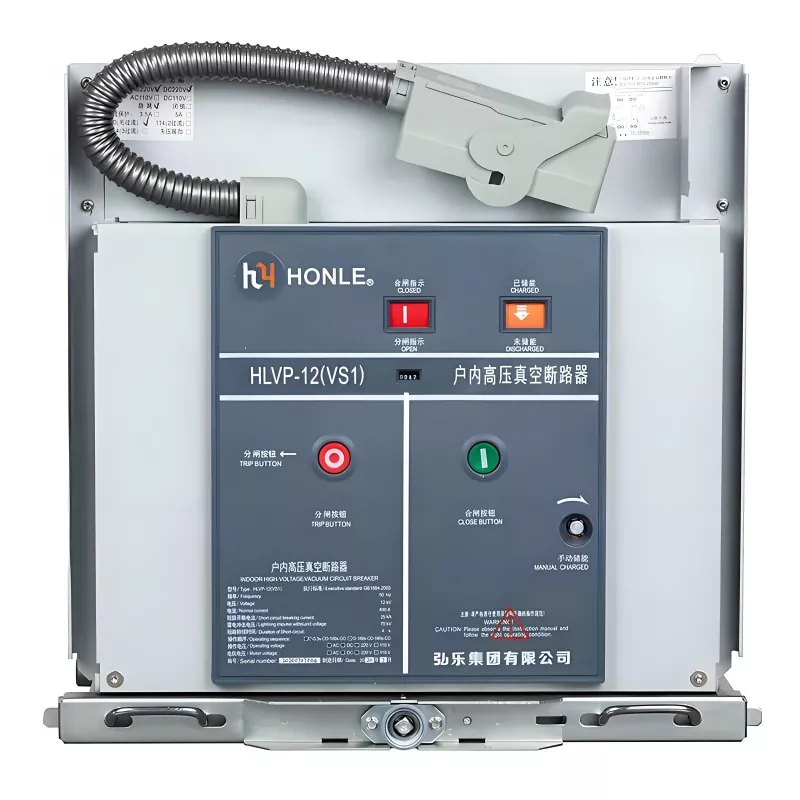

11kV 630A Vacuum Circuit Breaker

HUAJIDIAN specializes in the R&D, production, and sales of high-voltage switchgear, with years of deep expertise in the 11kV 630A vacuum circuit breaker sector. The brand features an independent R&D team, a modern manufacturing facility, and a comprehensive quality control system, focusing on technological innovation in medium- and high-voltage power protection equipment.

The 11kV 630A VCB product line encompasses a full range of offerings, including indoor and outdoor vacuum circuit breakers and complete switchgear assemblies, serving industries such as power utilities, mining, chemicals, and construction. All products meet international quality standards and hold ISO9001 certification; they are best-sellers in both domestic and international markets. Having been showcased at events like the Mexico Power Exhibition, the brand has established a strong global reputation based on reliable technology and quality.

Core Product Advantages

1. Excellent Insulation Performance, Suitable for Complex Environments

The vacuum interrupter employs a fully embedded epoxy resin housing design, significantly enhancing the equipment's overall insulation and providing robust resistance against pollution, moisture, and condensation. Standard models operate stably at altitudes of 1,000 meters or below, while customization options for ultra-high altitudes are available to meet the operational requirements of diverse, specialized environments.

2. Exceptional Service Life, Supports Frequent Operation

The 11kV 630A VCB boasts a mechanical lifespan and rated current breaking capability of up to 20,000 operations. It supports up to 50 operations at maximum short-circuit current and ensures stable breaking performance for at least 30 operations under 40kA short-circuit conditions. It is ideally suited for scenarios involving frequent equipment start-stop cycles and repeated line switching, effectively reducing the frequency of equipment replacement and long-term maintenance costs.

3. Robust Short-Circuit Protection Ensures System Safety

The product features a maximum rated short-circuit breaking current of 40 kA and a peak withstand current of up to 100 kA. In the event of sudden faults such as short circuits or overloads, it rapidly interrupts fault currents and isolates faulty equipment. This prevents fault propagation—thereby avoiding widespread power outages and equipment damage—and comprehensively safeguards the operational safety of the power distribution system.

4. Precise Operating Parameters and Strong Interoperability

The 11kV 630A Vacuum Circuit Breaker offers precise and stable operating parameters: energy storage time ≤10s, contact opening distance of 11±1mm, contact over-travel of 3.5±0.5mm, average opening/closing speed of 1.2±0.2m/s, and three-phase synchronization ≤2ms. It supports the standard "0-0.3s-CO-180s-CO" operating sequence and integrates seamlessly with various power protection devices to enable intelligent, precision-controlled power protection.

Complete Technical Specifications

Key Application Scenarios

1. Power Grid Substations and Distribution Rooms

Used for protection on the low-voltage output side of main transformers and for isolating line faults; prevents fault propagation and ensures the overall operational stability of the regional power grid.

2. Heavy Industry and Manufacturing

Suitable for power distribution protection of high-power equipment in sectors such as steel, chemicals, and machinery manufacturing; capable of handling frequent start-stop cycles for motors and transformers while ensuring reliable interruption and safety protection.

3. Power Distribution in Special Environments

Features superior moisture- and pollution-resistant insulation, enabling stable operation in high-humidity coastal environments; customizable versions are available for high-altitude, low-pressure conditions, resolving the instability issues traditional circuit breakers face in harsh environments.

4. Commercial and Residential High-Rise Buildings

Used for protecting 11kV medium-voltage main lines within buildings; effectively manages load fluctuations and short-circuit risks to ensure electrical safety.

Real-World Application Case

Case Study 1: Power Distribution Retrofit for a Coastal Chemical Plant

A large chemical plant in East China, located in a coastal area, experienced issues where high humidity and salt spray caused insulation aging and frequent tripping in traditional circuit breakers, thereby disrupting the stable operation of production lines. The enterprise upgraded its 11kV power distribution system using the HUAJIDIAN 11kV 630A Vacuum Circuit Breaker (VCB). The product features a solid-sealed insulation structure that effectively resists salt spray corrosion and moisture ingress. The equipment has operated continuously for 24 months without insulation failures or abnormal tripping, ensuring uninterrupted production and helping the enterprise reduce O&M costs and losses from downtime by over 15%.

Case Study 2: High-Frequency Operation Project in an Industrial Park

A manufacturing industrial park in Central China houses numerous motors and transformers that require frequent starting and stopping, placing extremely high demands on the service life and operational durability of circuit breakers. The park deployed HUAJIDIAN 11kV 630A VCBs across the board for 11kV branch line protection. With an ultra-long service life of 20,000 operations, the units are perfectly suited for high-frequency switching conditions. The equipment has operated fault-free for a year, resolving issues common to traditional circuit breakers—such as premature aging and damage—and significantly enhancing the reliability of the industrial power supply.

FAQ

Q1: What harsh operating conditions can the HUAJIDIAN 11kV 630A Vacuum Circuit Breaker withstand?

The product boasts exceptional environmental resilience; the standard model is suitable for altitudes up to 1,000 meters, while customized models can meet higher altitude requirements. Its epoxy resin solid-sealed structure provides excellent resistance to moisture, pollution, and salt spray, ensuring stable long-term operation in challenging environments such as humid coastal areas, dusty industrial plants, and low-pressure high-altitude regions.

Q2: What are the key advantages of this product for high-frequency operation scenarios?

The product excels in industrial scenarios involving frequent equipment starts/stops and repeated line switching: it offers a mechanical and electrical lifespan of 20,000 operations and can withstand up to 50 short-circuit current interruptions (≥30 times at 40kA). It features consistent switching speeds and a three-phase synchronization error of ≤2ms, resulting in high operational precision and low failure rates. This enables stable, high-frequency operation over the long term, effectively reducing equipment replacement and maintenance costs.

Q3: Does HUAJIDIAN offer customization services for this circuit breaker?

Yes, we do. As a manufacturer of specialized equipment, HUAJIDIAN offers personalized services—such as high-altitude adaptation, parameter customization, and structural optimization—tailored to the specific operating conditions at the user's site. All customized products strictly adhere to ISO9001 quality standards and match the performance of standard models, precisely meeting the diverse power distribution and protection requirements of various industries and specialized applications.
