Power System 1kV, 200kVA 3 phase
Certifications IEC 62271-200, IEC 694, GB3906, DIN VDE 0670
Leveraging the brand's strong manufacturing capabilities, this 11kV 200kVA 3 phase distribution transformer is manufactured on a dedicated oil-immersed transformer production line, with standardized and meticulous operations throughout all processes, including core processing, coil winding, tank welding, and vacuum oil filling. As a reliable industry supplier, Huajidian supports on-demand adjustments to equipment voltage levels, wiring groups, and accessory configurations. It adapts to both domestic 11kV standard requirements and rapidly responds to overseas non-standard customization needs, suitable for various domestic and international power distribution projects.
High production efficiency allows for handling bulk substation upgrade orders as well as personalized customization for individual projects, ensuring on-time delivery and no project delays. A professional technical team provides comprehensive after-sales maintenance and selection consultation, installation guidance, and complete after-sales support, completely eliminating user concerns about equipment use.
The equipment core uses a high-strength integral binding process, significantly reducing electromagnetic vibration and resulting in extremely low operating noise. It can be safely installed in noise-sensitive areas such as residential areas and villages without disturbing residents' daily rest, perfectly suited for densely populated power supply scenarios.
The internal coils undergo special curing treatment, resulting in high mechanical strength and excellent structural stability. Facing complex operating conditions such as grid voltage fluctuations and sudden short-circuit impacts, the coils are not easily deformed or damaged, ensuring stable power output and effectively improving the overall reliability of the power distribution system.

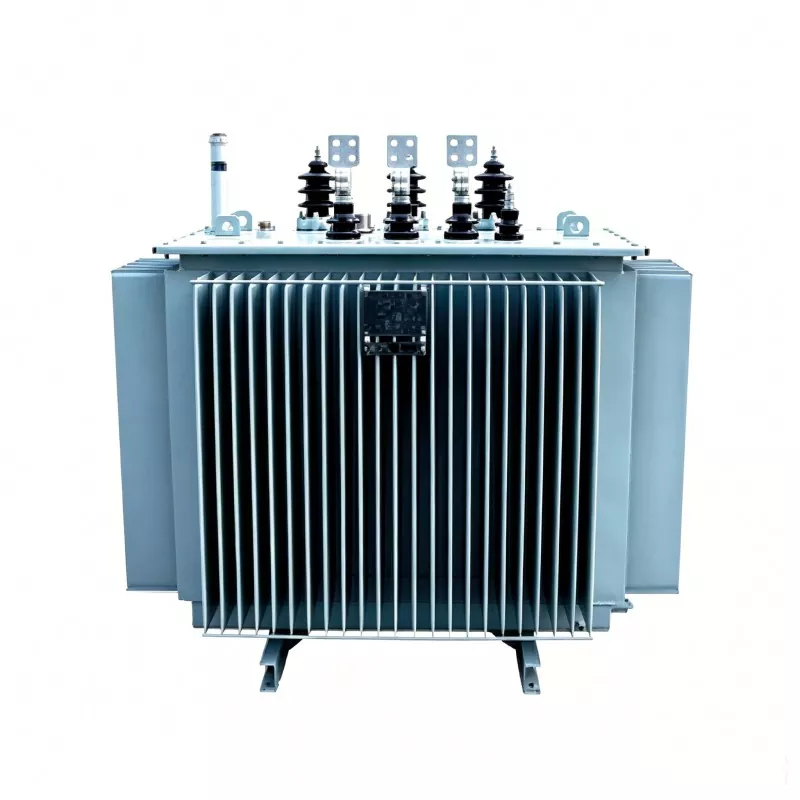

The 11kV 200kVA 3 phase distribution transformer tank is made of thickened cold-rolled steel plate in one piece, with no structural gaps, eliminating the risk of oil leakage. The outer wall is coated with high-performance weather-resistant and corrosion-resistant paint, which can withstand wind, sun, and rain for a long time. It is not prone to rust and corrosion even after more than ten years of outdoor use, significantly reducing equipment replacement costs.
The side corrugated radiator has both heat dissipation and automatic compensation function for transformer oil thermal expansion and contraction, eliminating the need for an additional oil conservator. The equipment is completely isolated from air and moisture, delaying the aging of the insulating oil. Frequent oil changes are unnecessary, and daily maintenance workload is minimal, resulting in worry-free and cost-effective long-term use.

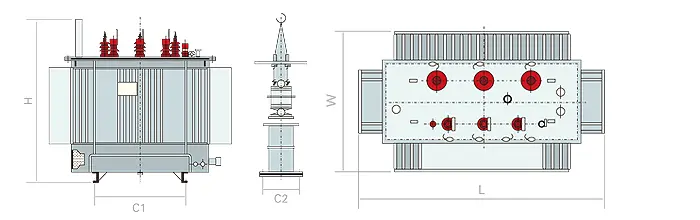

High-voltage end is equipped with high-quality ceramic bushings, providing ample creepage distance and minimizing flashover in rainy or humid weather, ensuring equipment insulation safety. A pre-installed lifting ring on the top ensures stable and convenient hoisting and transportation; the base features standard mounting holes, supporting pole mounting, ground mounting, and substation installation, adapting to various construction scenarios. The nameplate on the unit displays clear parameters, allowing maintenance personnel to quickly read core information such as equipment model, capacity, and voltage without consulting a manual.
In the rural power grid upgrade project in Yulin, Shaanxi Province, the local power department addressed the issues of surging household appliance loads, insufficient existing distribution capacity, and unstable voltage by replacing old 160KVA transformers with Huajidian 11kV 200kVA 3 phase distribution transformers.
After installation and commissioning, the equipment successfully handled peak summer and Spring Festival electricity demand, operating stably throughout. Its ultra-low noise design is suitable for rural living environments, and its fully sealed, corrosion-resistant structure is suitable for outdoor use, requiring minimal maintenance. This equipment effectively solved the voltage imbalance and insufficient power supply problems for over 80 households in the surrounding area, significantly improving the reliability of rural power supply. Relying on stable product performance, efficient factory delivery, and on-site technical guidance services, the project was completed on schedule and passed acceptance to high standards, gaining high recognition from the client.
Huajidian has deep expertise in transformer R&D and production, possessing mature flexible production capabilities. For this 200KVA transformer, voltage levels can be optimized and wiring methods adjusted according to on-site conditions, and auxiliary accessories such as temperature control and protection can be selected, precisely matching both domestic standard power grid standards and the needs of special non-standard overseas projects.
Standardized production lines accommodate both bulk procurement and individual customized orders, ensuring sufficient production capacity and stable delivery times. A dedicated technical team provides full-process follow-up service, covering pre-sales selection, in-sales installation guidance, and after-sales fault repair, providing comprehensive service guarantees.
Q1: What is the difference between a fully sealed transformer and a transformer with an oil conservator? Which is more suitable for outdoor use?
Both product types have their advantages: Huajidian's fully sealed transformers are maintenance-free and offer excellent moisture and dust resistance, isolating them from water vapor and impurities. They are suitable for outdoor, humid, dusty, and corrosive conditions, making them the preferred choice for long-term outdoor fixed installations. Transformers with oil conservators offer better heat dissipation and are more suitable for long-term high-load continuous operation. We can recommend suitable models based on the customer's site environment and load conditions.
Q2: Does this transformer require additional protective facilities when installed outdoors in coastal areas?
Standard outdoor pole-mounted and ground-mounted transformers do not require additional protection. The equipment comes standard with a weather-resistant and corrosion-resistant coating that can withstand normal wind, rain, and sun exposure. For coastal areas with high salt spray and strong corrosiveness, a reinforced anti-corrosion coating can be customized to significantly improve the equipment's corrosion resistance and outdoor service life.
Q3: What customization services does this 11kV 200kVA 3 phase distribution transformer support?
The product supports comprehensive personalized customization. Core parameters such as voltage level and wiring method can be adjusted as needed. Auxiliary accessories such as temperature controllers, surge protectors, and monitoring sensors can also be added. Whether it's a domestic standard model or a special non-standard parameter requirement from overseas, we can respond quickly and customize production to meet the differentiated power distribution needs of various projects.
