Power System 1000kVA, 11kV/0.4kV, 50Hz/60Hz
Certifications IEC 62271-200, IEC 694, GB3906, DIN VDE 0670

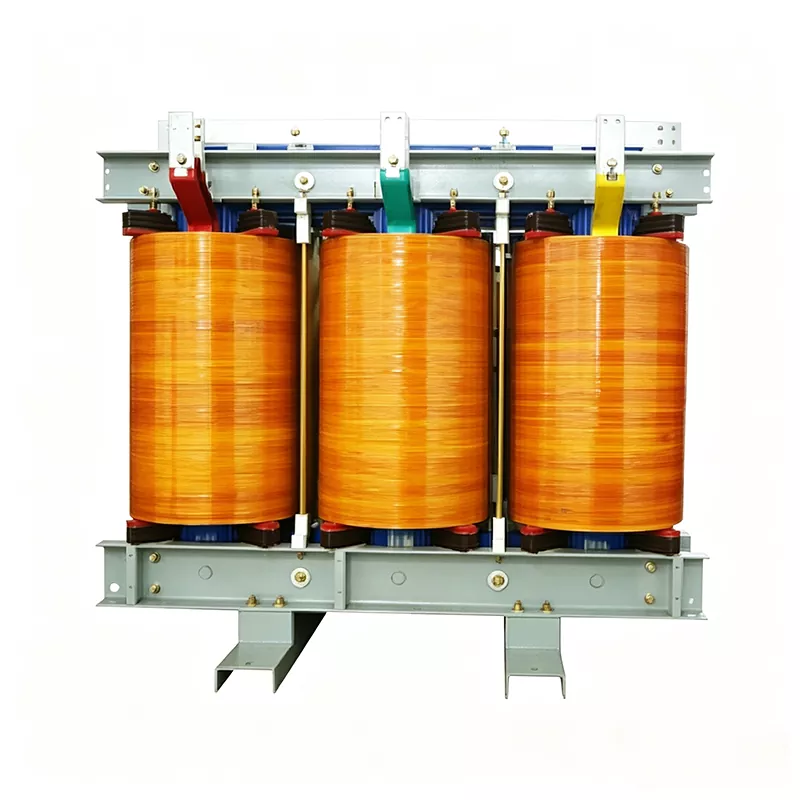

The 11kV 1000 kVA dry type transformer is a core power distribution device in 11kV medium-voltage systems. Unlike traditional oil-immersed transformers, it completely eliminates the risks of fire and leakage. The company possesses a complete production line encompassing winding fabrication, vacuum impregnation, and core processing, achieving integrated production from raw materials to finished products, ensuring consistent and stable quality. Each unit undergoes multiple tests before leaving the factory, including insulation withstand voltage, partial discharge, temperature rise, and short-circuit impulse testing, fully complying with IEC international power standards.
The windings utilize high-strength insulation materials combined with vacuum impregnation technology, resulting in high insulation strength and low partial discharge, meeting the requirements for 11kV voltage level operation and eliminating insulation breakdown issues. The winding structure has excellent moisture and dust resistance; even in humid and dusty indoor environments, insulation performance will not degrade due to condensation or dust accumulation.
The core uses high-permeability oriented cold-rolled silicon steel sheets, combined with a stepped core and fully oblique joint technology. Both no-load and load losses are superior to industry standards, effectively reducing electricity costs in the long term. The core is rigidly bound, resulting in low operating noise and vibration, minimizing interference with surrounding office and production environments.
Standard configuration includes an air self-cooling mode, relying on natural convection for heat dissipation; the structure is simple and consumes no additional energy. A crossflow fan can be added to upgrade to a forced air cooling mode, rapidly increasing load capacity to cope with sudden high-load conditions. The equipment features a built-in temperature controller that monitors winding temperature in real time. It automatically alarms when the temperature exceeds the limit, starts and stops the fan, and triggers trip protection in case of abnormal temperature, ensuring safe operation.
The 11kV 1000 kVA dry type transformer features an oil-free design, high fire safety rating, and can be directly installed in building power distribution rooms without the need for separate outdoor site planning.
A professional R&D team can provide customized solutions based on the voltage, frequency, and regulatory requirements of different countries and regions, having served numerous large-scale projects both domestically and internationally.
Possesses large-scale production capacity for 11kV series dry type transformers, capable of handling large-volume orders while quickly responding to small-batch customization needs, with a robust supply chain ensuring on-time delivery.
The foreign trade and technical teams provide one-stop service including selection, installation guidance, and after-sales maintenance, assisting customers in completing product certification and parameter integration, reducing project implementation risks.
Eight transformers of this model were installed in the power distribution room of a top-tier hospital in East China. Thanks to their fire-resistant, low-noise, and maintenance-free characteristics, they have operated stably for three consecutive years, significantly reducing maintenance workload.
Regional data centers selected this equipment as their core power distribution device. Reliable insulation performance and an intelligent temperature control system ensure uninterrupted power supply to servers 24/7.
Several light industrial factories have adopted this product after completing 11kV power grid upgrades. The equipment has shown significant energy-saving and consumption-reducing effects, and its dustproof and moisture-proof design is perfectly suited to the production workshop environment.
Q1: Can this 11kV 1000 kVA dry type transformer be used long-term in humid and dusty indoor environments?
A1: Yes. The windings undergo special insulation and impregnation treatment, providing excellent moisture and dust resistance. Condensation and dust accumulation will not affect the insulation effect, allowing for long-term stable operation.
Q2: What are the product's heat dissipation methods, and what operating conditions are they suitable for?
A2: Standard configuration includes air self-cooling, suitable for normal stable loads; optional fan-cooled system converts it to forced air cooling, capable of handling short-term high-load scenarios and improving the equipment's load-bearing capacity.
Q3: Does the 11kV 1000 kVA dry type transformer meet international standards, and is its factory testing complete?
A3: Product manufacturing and testing comply with IEC international power standards. Each unit undergoes rigorous testing before leaving the factory, including insulation, partial discharge, temperature rise, and short-circuit impulse tests, ensuring quality.
